| Attribute | Details |
|---|

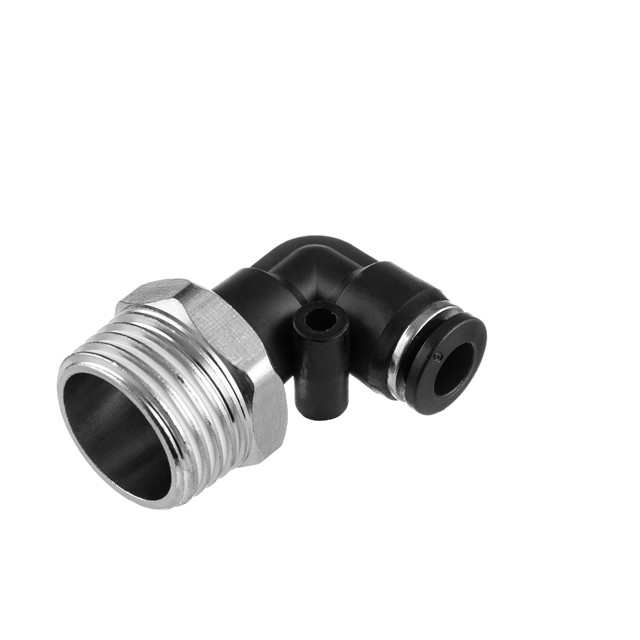

| 1. Model | KS-03 |
| 2. Product type | Male-thread push-in pneumatic elbow |
| 3. Connection layout | Male thread to push-in tube port |
| 4. Angle | 90 degrees |
| 5. Thread gender | Male |
| 6. Thread size | Confirm exact specification before ordering |
| 7. Tube size | Confirm compatible outside diameter |
| 8. Main body material | Engineering polymer with metal threaded base |
| 9. Body color | Black with silver-colored metal thread |
| 10. Release ring | Black push collet |
| 11. Service medium | Compressed air |
| 12. Main function | Connect tubing to threaded equipment at 90 degrees |
| 13. Tube connection | Push-to-connect |
| 14. Tube release | Press collet and remove tube after depressurizing |
| 15. Spray gun use | Suitable for compatible spray-gun air systems |
| 16. Compressor use | Suitable for compressor accessories and manifolds |
| 17. Regulator use | Suitable for filters, regulators and valves |
| 18. Industrial use | Light automation and maintenance air lines |
| 19. Automotive use | Body-shop and workshop pneumatic routing |
| 20. Tube material | Use compatible PU, PE or nylon tubing |
| 21. Working pressure | Confirm rating for fitting and tubing combination |
| 22. Temperature range | Depends on seals, tubing and environment |
| 23. Airflow | Depends on bore, tube size and pressure |
| 24. Seal type | Internal push-fitting and threaded seals |
| 25. Thread sealing | Use approved pneumatic sealant if required |
| 26. Installation tool | Use a suitable wrench on the metal hex base |
| 27. Tube preparation | Cut squarely and remove burrs |
| 28. Tube insertion | Push fully to the internal stop |
| 29. Routing benefit | Supports compact right-angle tube routing |
| 30. Space benefit | Useful near walls and confined equipment |
| 31. Maintenance benefit | Tube can be disconnected without removing the threaded base |
| 32. Reusability | Reusable while threads, seals and collet remain sound |
| 33. Leak prevention | Use correct tube size, full insertion and sealed threads |
| 34. Inspection | Check thread, collet, seal and tube end |
| 35. Cleaning | Keep tube port free from paint and debris |
| 36. Safety | Depressurize before installation or tube removal |
| 37. Handling caution | Avoid excessive torque on the polymer elbow body |
| 38. Damage warning | Replace if cracked, loose or leaking |
| 39. Storage | Store clean and dry |
| 40. Packaging | Bulk or retail packaging available |
| 41. OEM service | Custom thread, tube size and packaging may be available |
| 42. Package contents | 1 x KS-03 male-thread elbow fitting |
