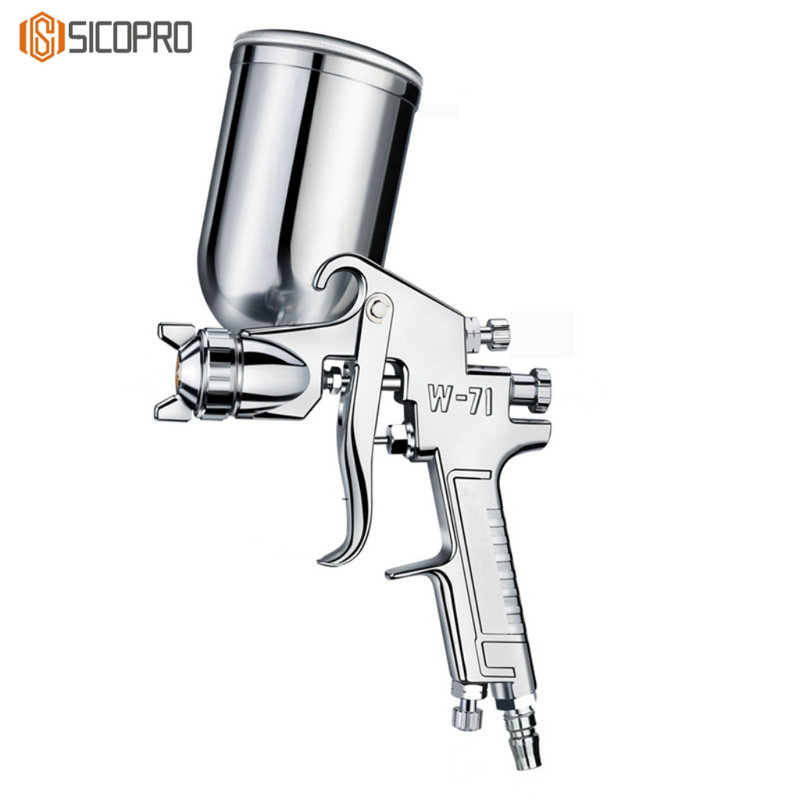

The W-71G spray gun is designed for high-quality finish applications, delivering excellent atomization and efficiency for automotive, wood, and industrial surfaces.
Model: W-71G
Spray Technology: HVLP
Nozzle Size: 1.3mm / 1.5mm / 1.8mm
Air Inlet Pressure: 2.5 - 3.5 bar
Air Consumption: 7.5 - 9.0 CFM
Paint Output: 180 - 260 ml/min
Pattern Width: 230 - 260 mm
Cup Capacity: 600ml stainless steel
Body Material: Chrome-plated aluminum
Needle/Nozzle: Stainless steel
Feed Type: Gravity
Control: Fluid, Pattern, and Air adjustments
Weight: Approx. 620g
Finish: Mirror polished
Connection: 1/4" NPT
Grip: Ergonomic non-slip
Applications: Automotive, woodworking, industrial painting
Compatible Coatings: Solvent & water-based paints, primers, clear coats
Transfer Efficiency: ≥ 75%
Over-spray: Reduced
Noise Level: Low
VOC Emission: Low
Corrosion Resistance: Yes
Cleaning: Easy disassembly
Accessories: Cleaning brush, wrench, filter
OEM/ODM: Support available
Custom Logo: Acceptable
Warranty: 1 year
Finish Quality: Smooth, consistent coverage
Durability: Industrial-grade
Paint Type: Medium to high viscosity
Spray Type: Adjustable fan spray
Trigger: Two-stage
Temperature Tolerance: 5°C - 40°C
User Level: Professional & Hobbyist
Usage Frequency: Daily
Spray Distance: 200mm - 250mm
Maintenance: Low
Environment Friendly: Yes
Safety Advice: Use with proper ventilation
