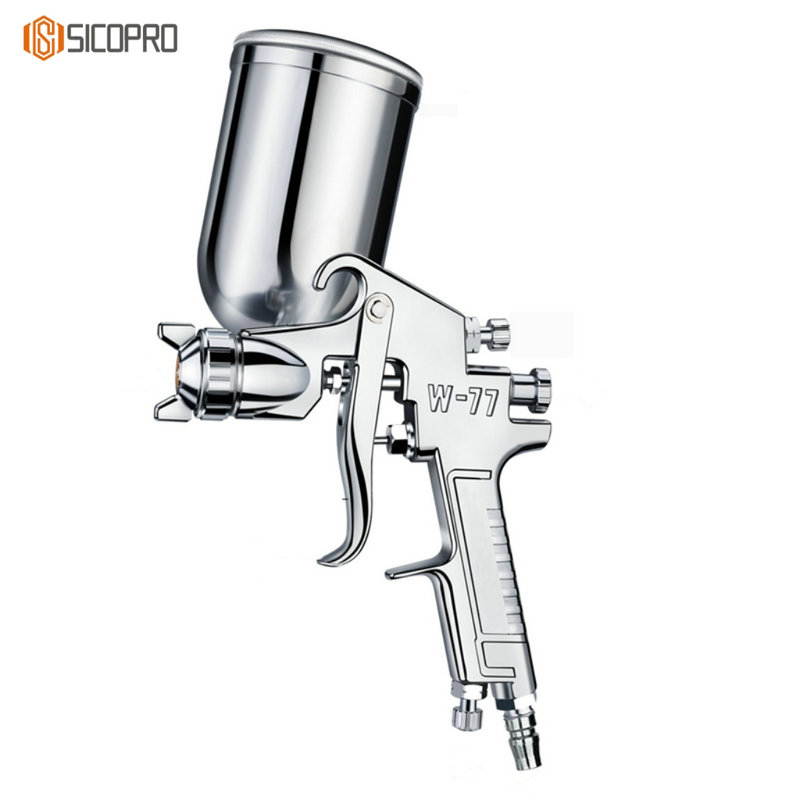

Designed for professional painters and industrial users, the W-77G provides consistent and smooth atomization for superior coverage and finish quality.
Model: W-77G
Type: Gravity Feed Spray Gun
Nozzle Sizes: 1.5mm / 1.8mm / 2.0mm optional
Air Inlet Pressure: 3.0 - 4.0 bar (43 - 58 psi)
Air Consumption: 10.5 CFM
Paint Output: 200 - 280 ml/min
Pattern Width: 240 - 280 mm
Cup Capacity: 600ml Stainless Steel Cup
Material: Chrome-plated aluminum body
Needle/Nozzle: Stainless steel
Trigger Type: 2-stage progressive
Feed Type: Gravity
Control Knobs: Fluid, Pattern, Air Pressure
Finish: Mirror polished
Connection: 1/4" NPT
Weight: 670g approx.
Spray Pattern: Adjustable fan spray
Applications: Automotive spraying, machinery coating, wood finishing, marine use
Compatible Paints: Solvent-based, water-based, primers, lacquers, enamels
Transfer Efficiency: ≥ 75%
Noise: Low emission
VOC: Low VOC emissions
Durability: Industrial-grade quality
Corrosion Resistance: Yes
Cleaning: Easy maintenance & disassembly
Environmentally Friendly: Yes
Surface Finish: High gloss
Usage Frequency: Daily / Commercial
Included Accessories: Spanner, brush, filter
OEM/ODM: Support available
Warranty: 1 year
Custom Logo: Acceptable
Grip: Ergonomic handle design
Temperature Range: 5°C - 40°C
Spray Distance: 180-250mm
Finish Quality: Smooth and consistent
User Type: Professional & Workshop use
Safety: Recommended with proper ventilation
Atomization Control: Fine and efficient
Maintenance Level: Low
Viscosity Compatibility: Medium to high viscosity coatings
Pressure Type: High volume, low pressure (HVLP)
