HVLP gravity-feed spray gun with vertical fan, horizontal fan and round spray patterns for flexible coverage. Suitable for automotive refinishing, furniture, cabinets, woodworking and metal projects with adjustable air, fluid and pattern controls.
3-Pattern Adjustable HVLP Spray Gun
A versatile gravity-feed pneumatic spray gun designed to switch easily between vertical, horizontal and round patterns. It supports broad panels, narrow surfaces and detailed touch-up work with a 600cc metal cup and multiple nozzle options.
45+ Product Attributes
| Attribute | Details |
|---|
| 1. Product Type | HVLP pneumatic spray gun |
| 2. Model | H-827P |
| 3. Feed Type | Gravity feed |
| 4. Cup Capacity | 600 cc |
| 5. Cup Material | Metal |
| 6. Nozzle Sizes | 1.4 / 1.7 / 2.0 / 2.5 mm |
| 7. Nozzle Type | Interchangeable |
| 8. Pattern Count | 3 |
| 9. Vertical Fan | For tall and narrow surfaces |
| 10. Horizontal Fan | For wide surfaces |
| 11. Round Pattern | For detail work and touch-ups |
| 12. Pattern Control | Adjustable knob |
| 13. Fluid Control | Adjustable |
| 14. Air Control | Adjustable |
| 15. Air Inlet | G1/4 inch |
| 16. Air Consumption | 2.5–3.5 CFM |
| 17. Pressure Spec | 3.5 bar / 50 PSI shown in specification panel |
| 18. Typical Inlet Range | 20–30 PSI for many projects |
| 19. Overall Height | Approx. 305 mm |
| 20. Gun Length | Approx. 125 mm |
| 21. Cup Top Width | Approx. 100 mm |
| 22. Cup Section Height | Approx. 135 mm |
| 23. Front Head Dimension | Approx. 45 mm |

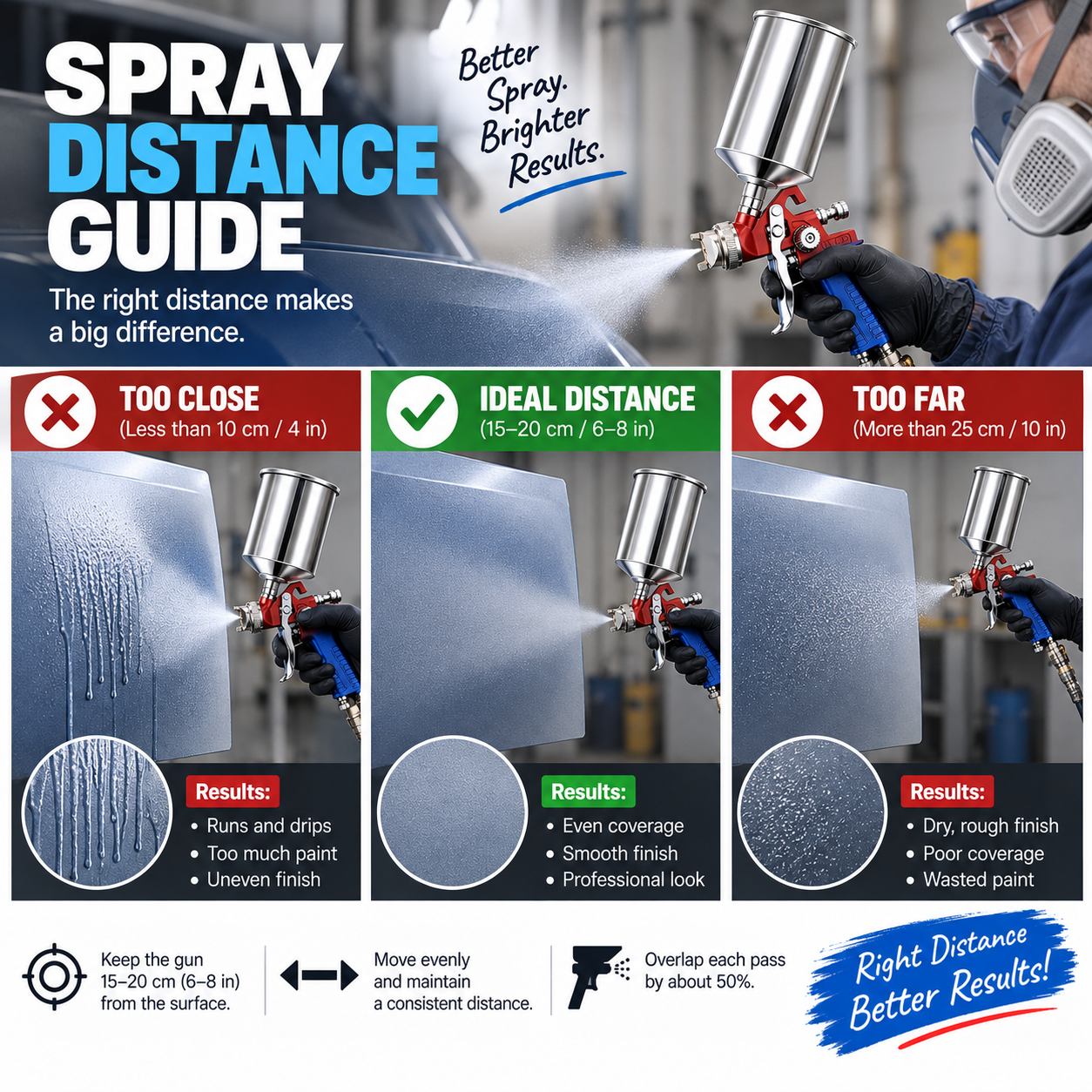

| 24. Ideal Spray Distance | 15–20 cm / 6–8 in |
| 25. Pass Overlap | About 50% |
| 26. Atomization | Fine atomization |
| 27. Finish | Smooth and even |
| 28. Power | Compressed air |
| 29. Trigger | Manual trigger |
| 30. Grip | Textured pistol grip |
| 31. Color | Red, blue and metallic |
| 32. Coating Viscosity | Low-to-medium viscosity coatings |
| 33. Automotive Paint | Suitable |
| 34. Primers | Suitable |
| 35. Clear Coats | Suitable |
| 36. Enamels | Suitable |
| 37. Lacquers | Suitable |
| 38. Urethanes | Suitable when compatible |
| 39. Auto Refinishing | Recommended |
| 40. Furniture | Recommended |
| 41. Cabinets | Recommended |
| 42. Woodworking | Recommended |
| 43. Metal Projects | Recommended |
| 44. Motorcycle Work | Suitable |
| 45. DIY Use | Suitable for experienced users |
| 46. Cleaning | Clean after every use |
| 47. Paint Filter | Recommended |
| 48. Included Cup | 600cc metal cup |
| 49. Included Wrench | Multi-function wrench |
| 50. Included Brush | Cleaning brush |
| 51. Included Filter | Air inlet filter |
| 52. Included Connector | G1/4 air connector |
| 53. Manual | Included |
Pattern Selection
Use the vertical fan for tall sections, the horizontal fan for wide panels, and the round pattern for small areas or touch-ups. Test the pattern before final spraying and keep a steady 15–20 cm working distance.
