| Attribute | Details |
|---|

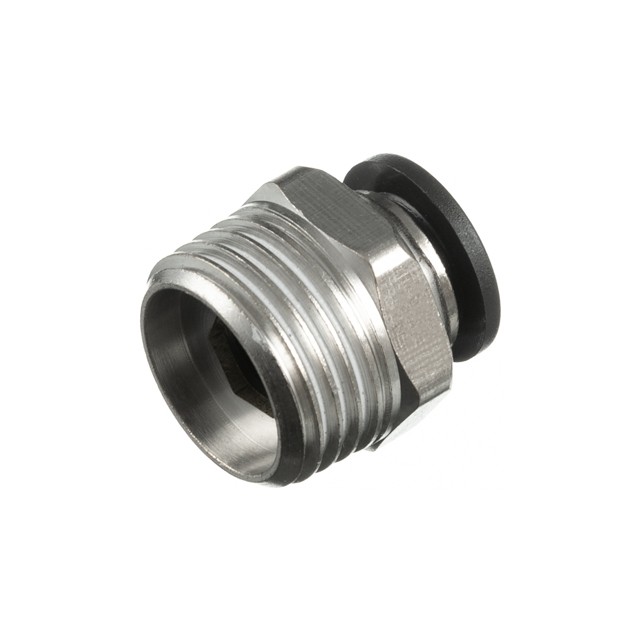

| 1. Model | KS-01 |
| 2. Product type | Straight push-in pneumatic fitting |
| 3. Connection layout | Male thread to push-in tube port |
| 4. Body orientation | Straight |
| 5. Thread gender | Male |
| 6. Thread size | Confirm exact specification before ordering |
| 7. Tube size | Confirm compatible outside diameter |
| 8. Main body material | Metal alloy |
| 9. Tube-release ring | Black polymer collet |
| 10. Surface finish | Bright silver-colored finish |
| 11. Body shape | Hexagonal threaded base |
| 12. Service medium | Compressed air |
| 13. Main function | Join pneumatic tubing to threaded equipment |
| 14. Tube connection | Push-to-connect |
| 15. Tube release | Press collet and pull tube after depressurizing |
| 16. Spray gun use | Suitable for compatible spray-gun air systems |
| 17. Compressor use | Suitable for compressor accessories and manifolds |
| 18. Regulator use | Suitable for filters, regulators and valves |
| 19. Industrial use | Light automation and maintenance air lines |
| 20. Automotive use | Body-shop pneumatic installations |
| 21. Tube material | Use compatible PU, PE or nylon pneumatic tubing |
| 22. Working pressure | Confirm rating for fitting and tube combination |
| 23. Temperature range | Depends on seals, tube and operating conditions |
| 24. Airflow | Depends on bore, tube size and pressure |
| 25. Seal type | Internal pneumatic sealing elements |
| 26. Thread sealing | Use approved pneumatic sealant if required |
| 27. Installation tool | Use a suitable wrench on the hex body |
| 28. Tube preparation | Cut tube squarely and remove burrs |
| 29. Tube insertion | Push fully to the internal stop |
| 30. Installation benefit | Fast assembly without hose clamps |
| 31. Maintenance benefit | Tube can be removed and replaced quickly |
| 32. Reusability | Reusable when collet, seals and threads remain sound |
| 33. Leak prevention | Use correct tube size and full insertion |
| 34. Inspection | Check thread, collet, seal and tube end |
| 35. Cleaning | Keep the tube port free from dust and paint |
| 36. Safety | Depressurize before installation or tube removal |
| 37. Handling caution | Do not pull the tube sideways at the fitting |
| 38. Damage warning | Replace if cracked, loose or leaking |
| 39. Storage | Store clean and dry |
| 40. Packaging | Bulk or retail packaging available |
| 41. OEM service | Custom thread, tube size and packaging may be available |
| 42. Package contents | 1 x KS-01 straight push-in fitting |
