  • JSP20 Japanese Profile Push-On Tube Quick Air Coupler
    ❤ Add to collection

  • JSP20 Japanese Profile Push-On Tube Quick Air Coupler

    A compact Japanese-profile pneumatic quick coupler with a tube-connection inlet for compatible compressed-air tubing. The plated metal body, hex sections and release sleeve provide a practical connection point for spray-gun hoses, compressor lines and light workshop air systems.

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consult
Description
A compact Japanese-profile pneumatic quick coupler with a tube-connection inlet for compatible compressed-air tubing. The plated metal body, hex sections and release sleeve provide a practical connection point for spray-gun hoses, compressor lines and light workshop air systems.

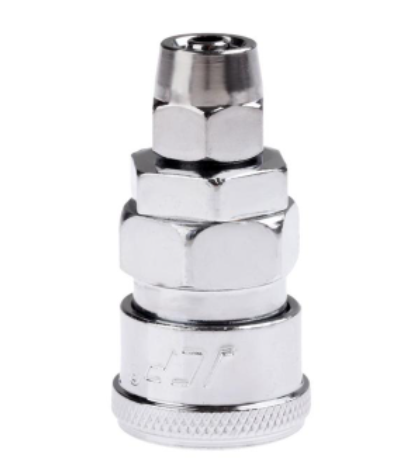

JSP20 Japanese Profile Push-On Tube Quick Air Coupler

The JSP20 is designed to connect compatible pneumatic tubing to a Japanese-profile quick plug. Its compact multi-hex body supports installation and servicing in spray-painting, compressor and workshop air systems.

Product Attributes

AttributeDetails
1. ModelJSP20
2. Product typePneumatic tube-entry quick coupler
3. Coupler profileJapanese profile
4. Inlet styleTube-connection inlet
5. Tube sizeConfirm compatible tube specification before ordering
6. Main materialPlated metal
7. Surface finishBright silver-colored finish
8. Body shapeMulti-section hexagonal body
9. Release sleeveKnurled quick-release sleeve
10. Connection side onePneumatic tube inlet
11. Connection side twoQuick-coupler socket
12. Service mediumCompressed air
13. Main functionConnect pneumatic tubing to a matching quick plug
14. Spray gun useSuitable for compatible spray-gun air lines
15. Hose useSuitable for compatible flexible pneumatic tubing
16. Compressor useSuitable for light compressor air systems
17. Tool useSuitable for compatible light pneumatic tools
18. Installation methodInstall according to the confirmed tube-connection design
19. Installation toolUse appropriate wrenches on the hex sections
20. Tube retentionSecure tubing according to the fitting specification
21. Locking methodInternal mechanism retains a matching plug
22. Release methodRetract sleeve after depressurizing
23. Plug compatibilityUse with matching Japanese-profile plugs
24. Pressure ratingLimited by the lowest-rated tube, fitting or coupler
25. Temperature rangeDepends on tube, seals and operating conditions
26. AirflowDepends on tube bore, coupler bore and pressure
27. ReusabilityReusable while seals and locking parts remain serviceable
28. PortabilityCompact and lightweight
29. Automotive useBody-shop and vehicle refinishing air lines
30. Furniture useFurniture and cabinetry spray-finishing systems
31. Industrial useLight maintenance and production tubing
32. DIY useGarage and hobby compressor setups
33. Leak preventionUse correctly sized tubing and complete plug engagement
34. InspectionCheck tube joint, sleeve movement and seals
35. CleaningKeep the socket free from paint and debris
36. MaintenanceUse only approved pneumatic lubricant if needed
37. SafetyDepressurize before tube or coupler service
38. Handling cautionDo not pull or bend tubing sharply at the fitting
39. Damage warningReplace if loose, deformed, stuck or leaking
40. StorageStore clean and dry
41. OEM serviceCustom tube size, finish and packaging may be available
42. Package contents1 x JSP20 Japanese-profile tube-entry coupler

Installation Guidance

  1. Turn off the compressor and release all pressure.

  2. Confirm the tube size and Japanese-profile compatibility.

  3. Install and secure the tubing according to the fitting specification.

  4. Connect a matching plug and test all joints at low pressure.
