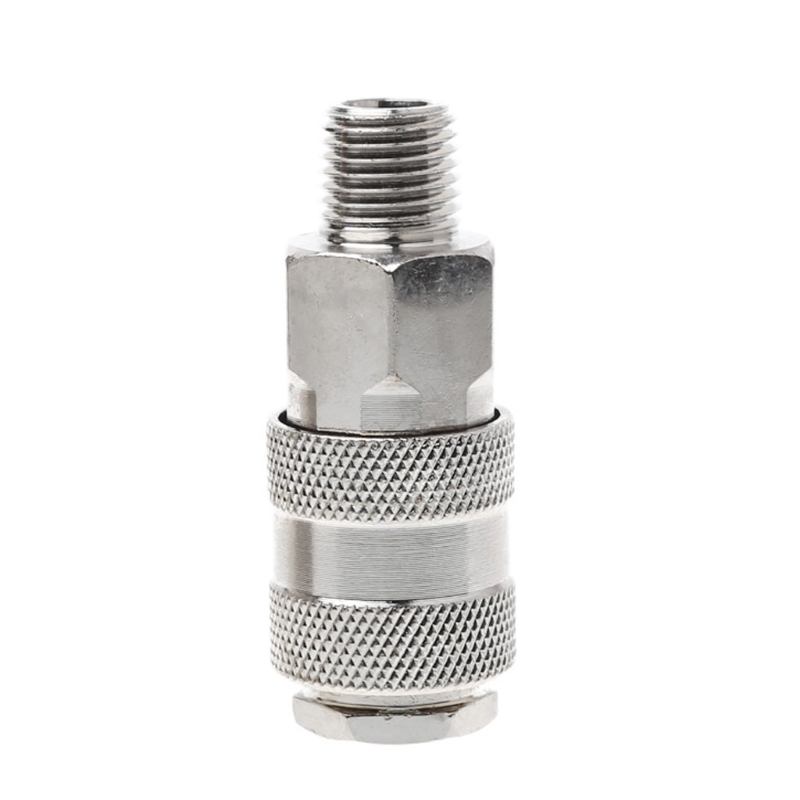

  • JSM20 Japanese Profile Male Thread Quick Air Coupler
    ❤ Add to collection

  • JSM20 Japanese Profile Male Thread Quick Air Coupler

    A plated Japanese-profile pneumatic quick coupler with a male threaded inlet for compatible hoses, manifolds, regulators and compressor accessories. The knurled sliding sleeve provides fast connection to matching plugs used with spray guns and light workshop air tools.

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consult
Description
A plated Japanese-profile pneumatic quick coupler with a male threaded inlet for compatible hoses, manifolds, regulators and compressor accessories. The knurled sliding sleeve provides fast connection to matching plugs used with spray guns and light workshop air tools.

JSM20 Japanese Profile Male Thread Quick Air Coupler

The JSM20 is a male-threaded pneumatic socket for compatible Japanese-profile quick-connect systems. It installs into a female threaded port and provides a convenient coupler point for spray-painting and workshop air lines.

Product Attributes

AttributeDetails
1. ModelJSM20
2. Product typePneumatic quick coupler socket
3. Coupler profileJapanese profile
4. Thread genderMale
5. Thread sizeConfirm exact specification before ordering
6. Main materialPlated metal
7. Surface finishBright silver-colored finish
8. Body shapeHexagonal threaded inlet body
9. Release sleeveKnurled sliding sleeve
10. Connection side oneMale threaded inlet
11. Connection side twoQuick-coupler socket
12. Service mediumCompressed air
13. Main functionConnect a female-threaded component to a matching plug
14. Spray gun useSuitable for compatible spray-gun air systems
15. Hose useSuitable for female-threaded hose ends
16. Regulator useSuitable for compatible filters and regulators
17. Compressor useSuitable for compressor outlets and manifolds
18. Tool useSuitable for light pneumatic tools
19. Locking methodInternal mechanism retains a matching plug
20. Release methodRetract the sleeve after depressurizing
21. Installation methodThread into a compatible female port
22. Installation toolUse a correctly sized wrench on the hex body
23. Thread sealingUse approved pneumatic sealant where required
24. Plug compatibilityUse with matching Japanese-profile plugs
25. Pressure ratingConfirm fitting and system ratings before use
26. Temperature rangeDepends on materials, seals and operating conditions
27. AirflowDepends on internal bore, plug and pressure
28. ReusabilityReusable while threads, seals and sleeve remain sound
29. PortabilityCompact and lightweight
30. Automotive useBody-shop and vehicle refinishing air lines
31. Furniture useFurniture and cabinet spray-finishing systems
32. Industrial useLight maintenance and production air lines
33. DIY useGarage and hobby compressor setups
34. Leak preventionSeal threads and confirm full plug engagement
35. InspectionCheck threads, sleeve movement and internal seals
36. CleaningKeep free from paint, dust and debris
37. MaintenanceUse approved pneumatic lubricant if required
38. SafetyRelease all pressure before fitting work
39. Damage warningReplace if worn, cracked, stuck or leaking
40. StorageStore clean and dry
41. OEM serviceCustom thread, finish and packaging may be available
42. Package contents1 x JSM20 male-thread Japanese air coupler

Installation Guidance

  1. Shut down and fully depressurize the air system.

  2. Confirm female-port thread and coupler profile.

  3. Apply approved sealant, hand-start and tighten on the hex body.

  4. Connect a matching plug and perform a low-pressure leak test.
