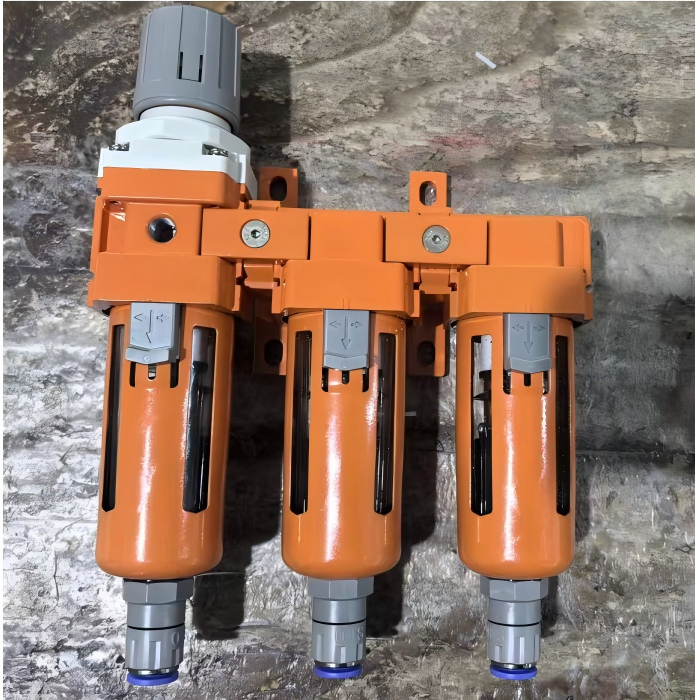

This modular air preparation assembly is designed to filter, regulate and lubricate compressed air before it reaches pneumatic tools, spray equipment or production machinery. The visible triple-bowl layout provides staged air treatment, easy inspection and stable working performance.
Product type: pneumatic air filter regulator lubricator unit.
Configuration: three-module combined air preparation system.
Main function: air filtration, pressure regulation and lubrication.
Body color: industrial orange housing with grey fittings.
Application medium: compressed air.
Recommended use: pneumatic tools and spraying systems.
Structure: modular connected design.
Regulator position: mounted at the inlet side.
Control knob: large grey adjustable pressure knob.
Pressure display: integrated round pressure gauge.
Gauge feature: easy visual pressure reading.
Bowl type: transparent inspection window style.
Bowl quantity: three vertical processing bowls.
Drain design: bottom drain connector on each bowl.
Connector style: grey quick-connect lower fittings.
Mounting style: upper bracket and screw-hole mounting points.
Installation orientation: vertical bowl installation.
Material appearance: metal upper body with durable polymer bowls.
Surface finish: glossy protective coating.
Air inlet: side port connection.
Air outlet: side port connection for downstream equipment.
Filter feature: separates moisture and particles from air.
Regulation feature: helps maintain consistent outlet pressure.
Lubrication feature: supplies oil mist for pneumatic components.
Maintenance: visible bowl area supports quick inspection.
Operation: manual knob adjustment.
Compatibility: suitable for air compressors and pneumatic lines.
Work scenario: spray painting air supply preparation.
Work scenario: workshop pneumatic tool operation.
Work scenario: automated production equipment.
Work scenario: machinery maintenance stations.
Benefit: reduces water and contamination in air lines.
Benefit: improves stability of pneumatic tool output.
Benefit: helps extend tool service life.
Benefit: supports cleaner coating application.
Design: compact integrated manifold layout.
Serviceability: detachable modular sections.
Visual style: bright color for easy identification.
Target users: factories, repair shops and coating workshops.
Package reference: one assembled FRL air preparation unit.
Customization: port size and configuration can be matched to system needs.
Safety note: use within rated air pressure and drain regularly.
