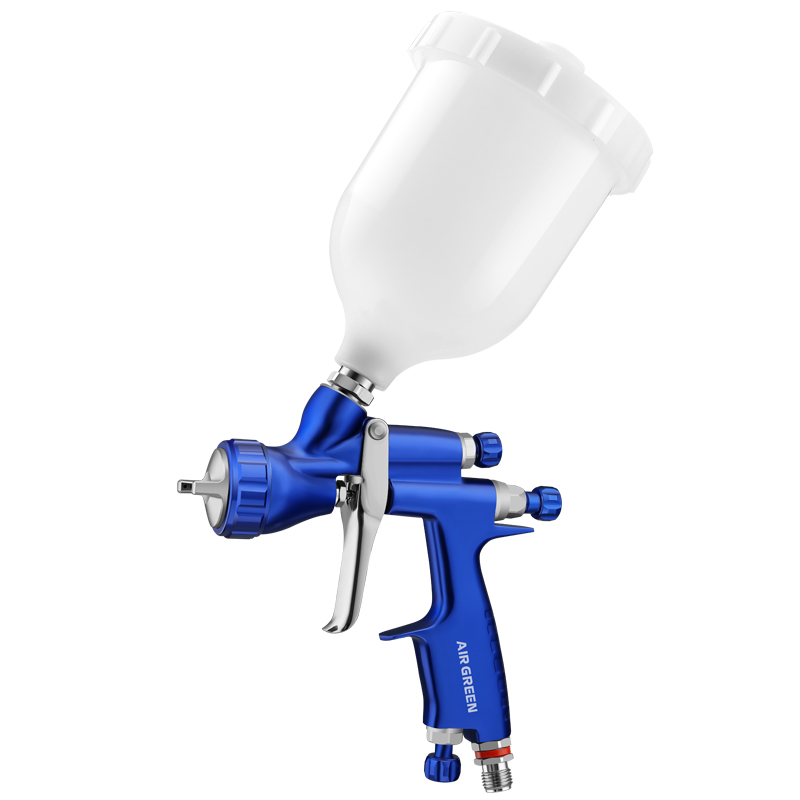

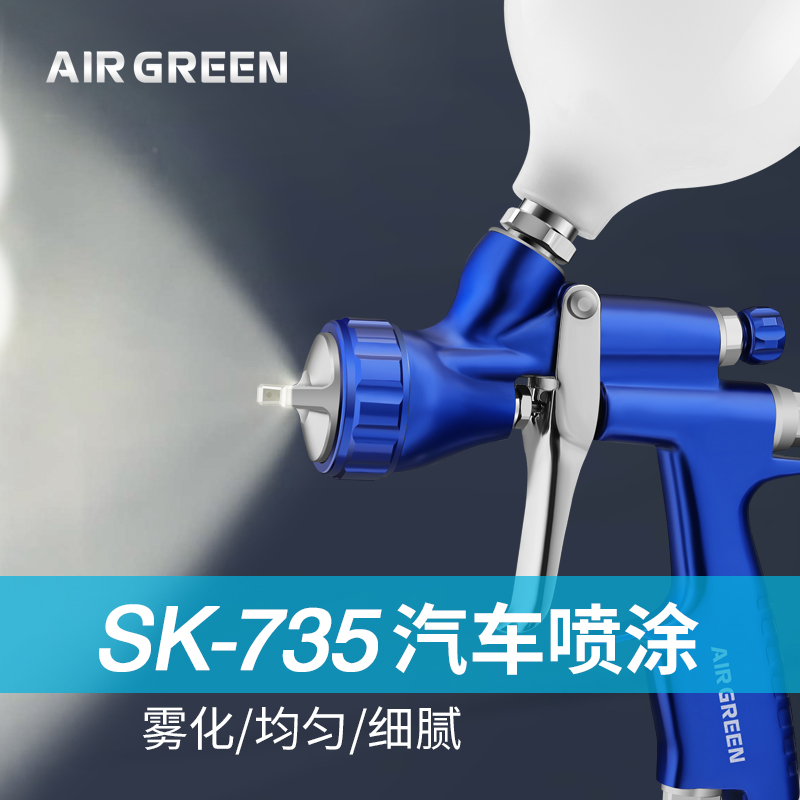

Model: SK735
Technology: LVLP (Low Volume Low Pressure)
Feed Type: Gravity
Nozzle Size Options: 1.2mm / 1.3mm / 1.4mm / 1.5mm
Needle/Nozzle Material: Stainless Steel

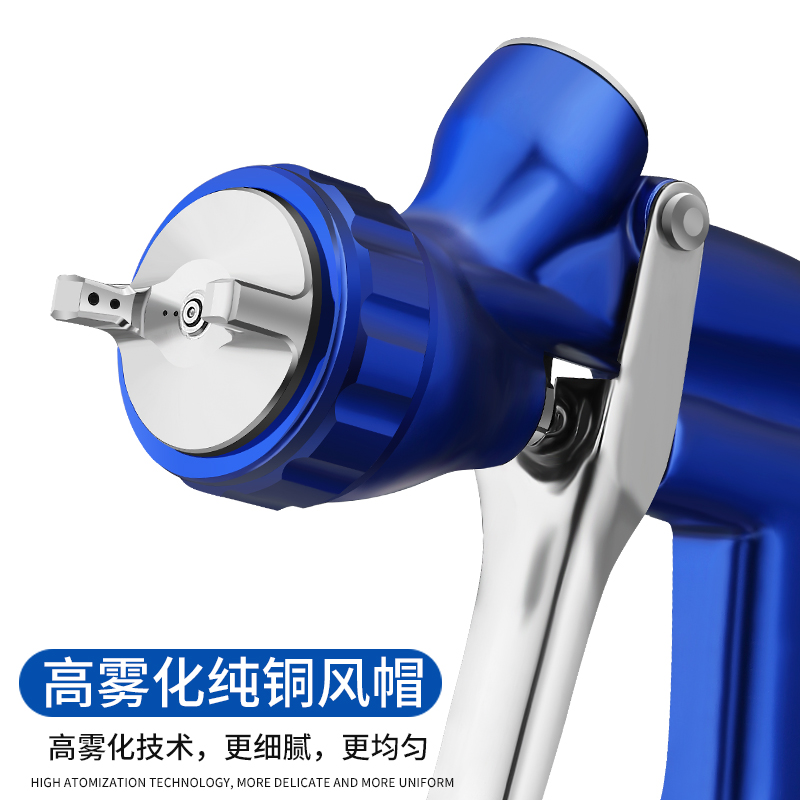

Air Cap Material: Anodized aluminum
Fluid Inlet: 1/4” NPT
Working Pressure: 1.5 - 2.5 bar (22-36 psi)
Air Consumption: 2.0 - 2.4 CFM
Paint Cup: 600ml (Plastic, Gravity-feed)
Body Material: Forged aluminum alloy
Body Finish: Blue anodized coating
Spray Pattern: Adjustable fan spray
Fan Width: 180-250mm
Control Knobs: Fluid, Pattern, and Air
Trigger Type: Two-stage, ergonomic
Handle: Ergonomic grip with anti-slip texture
Weight (without cup): Approx. 480g
Finish Quality: Ultra-fine atomization
Transfer Efficiency: 70-78%
Application Areas: Automotive, metal parts, wood furniture, plastics
Paint Types: Water-based and solvent-based paints
Environmental Impact: Low VOC, minimal overspray
Maintenance: Easy to clean and assemble
Durability: Corrosion and wear resistant
Atomization Quality: Fine mist for consistent coating
Operating Temperature: 5°C – 45°C
Noise Level: Low decibel operation
Included Accessories: Wrench, filter, brush
Usage Frequency: Suitable for continuous professional use
Recommended Compressor: ≥ 1 HP
Safety Features: Trigger lock
Cleaning Access: Tool-less disassembly
Pressure Regulation: Built-in air pressure control
Mounting: Standard gravity cup interface
Design: Balanced weight distribution for reduced fatigue
Compatibility: With PPS and other disposable cup systems
Usage Level: Professional and industrial-grade
Packaging: Color box with foam interior
Warranty: 1-year limited warranty
