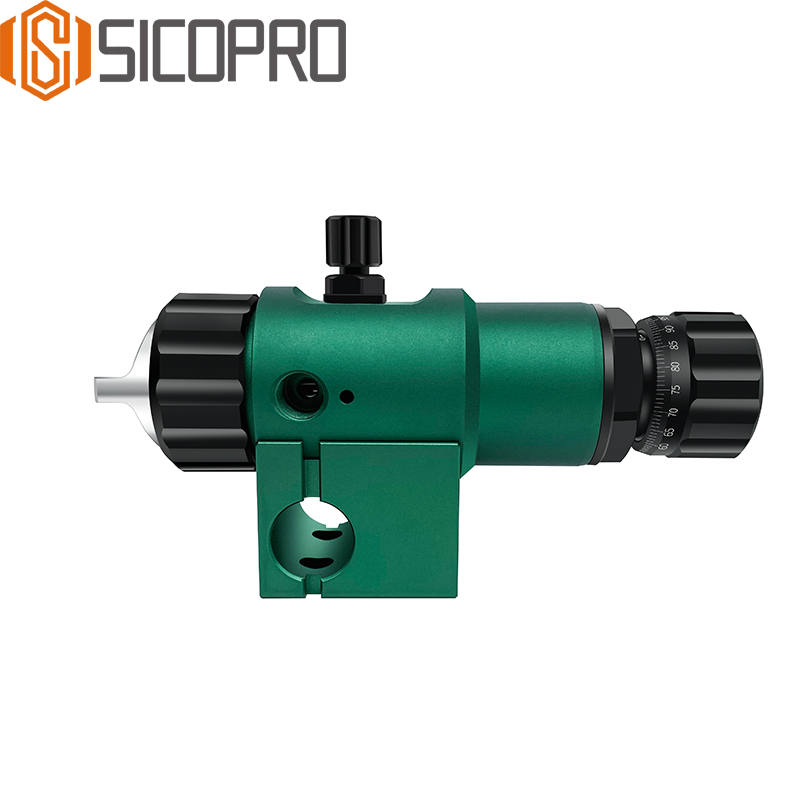

Model: WA-2020
Type: Automatic LVLP Spray Gun
Application: Robotic coating, industrial automation systems
Nozzle Size: 0.8mm / 1.0mm / 1.2mm
Material: High-grade aluminum and stainless steel
Air Inlet: 1/4" NPT
Mount Type: Fixed base with clamp system
Feed Type: External feed connection
Air Pressure: 2.0 - 2.5 bar
Air Consumption: 2.0 - 3.0 CFM
Paint Compatibility: Water-based and solvent-based
Spray Pattern: Round to fan, precision adjustable
Transfer Efficiency: ≥70%
Usage Industry: Furniture, automotive, electronics, appliances
Precision: High-speed repeatable coating
Automation: Compatible with robotic arms
Surface Finish: Smooth and uniform
Construction: Durable anodized body
Weight: Approx. 450g
Maintenance: Easy nozzle replacement
Noise Level: Low
Cleaning: Simple disassembly
Eco-Friendly: Reduced overspray
Seal Material: PTFE for chemical resistance
Air Cap: High-precision CNC machined
Durability: Long cycle life
Operating Distance: 10-15 cm
Spray Width: Up to 180 mm
Installation: Fixed mounting with stability
Control: External solenoid actuation
Certification: CE and ISO compliant
Color: Green and black
Special Feature: Compact design for tight integration
Paint Flow: Controlled and consistent
Use Environment: Automated production lines
Reliability: High-frequency use approved
