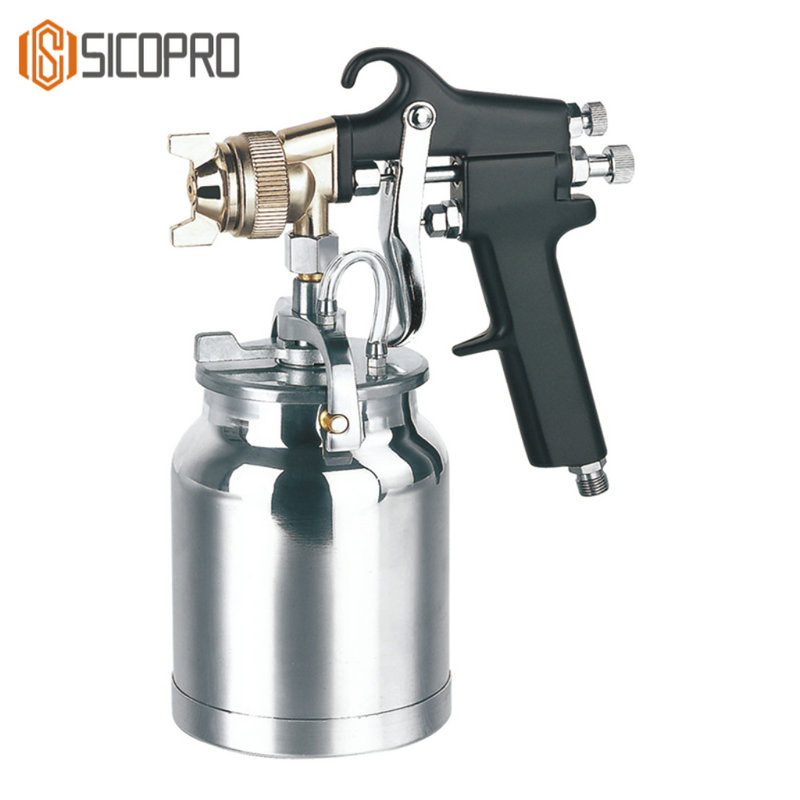

Model: PQ-2UA
Type: LVLP Suction Feed Spray Gun
Material: Stainless steel, aluminum alloy
Feed Type: Suction
Nozzle Size: 1.5mm / 1.8mm / 2.0mm (optional)
Operating Pressure: 2.0-3.5 bar
Air Consumption: 3.0-4.5 CFM
Paint Cup Capacity: 1000 ml (metal cup)
Air Inlet: 1/4" NPT
Applications: Industrial coatings, automotive refinishing, machinery painting
Spray Pattern: Fan-shaped, adjustable
Spray Width: Up to 280 mm
Material Compatibility: Solvent-based and water-based
Ergonomic Grip: Anti-fatigue handle
Weight: Approx. 900g
Transfer Efficiency: High
Trigger: 2-stage operation
Noise Level: Low
Durability: Built for professional daily use
Control: Fluid control, air adjustment, pattern control
Eco-Friendly: Reduced overspray
Finish Quality: Smooth and uniform
Cleaning: Easy to dismantle
Paint Flow: Stable and consistent
Connection Type: Universal fitting
Seal Material: PTFE for chemical resistance
Usage: Refinish shops, industrial painting, large-area spraying
Package Includes: Wrench, filter, cleaning brush
Color: Black and silver
Balance: Center-balanced
Surface Finish: Polished body
Maintenance: Low maintenance design
Warranty: 12 months
Working Distance: 20-25 cm
Replacement Parts: Available
Compliance: CE certified
Anti-leakage: Precision seal system
Usage Scenario: Car body, trucks, metal parts
Operating Mode: Pneumatic
Spray Finish: Fine atomization
Durability Grade: Industrial heavy-duty
