Product Overview

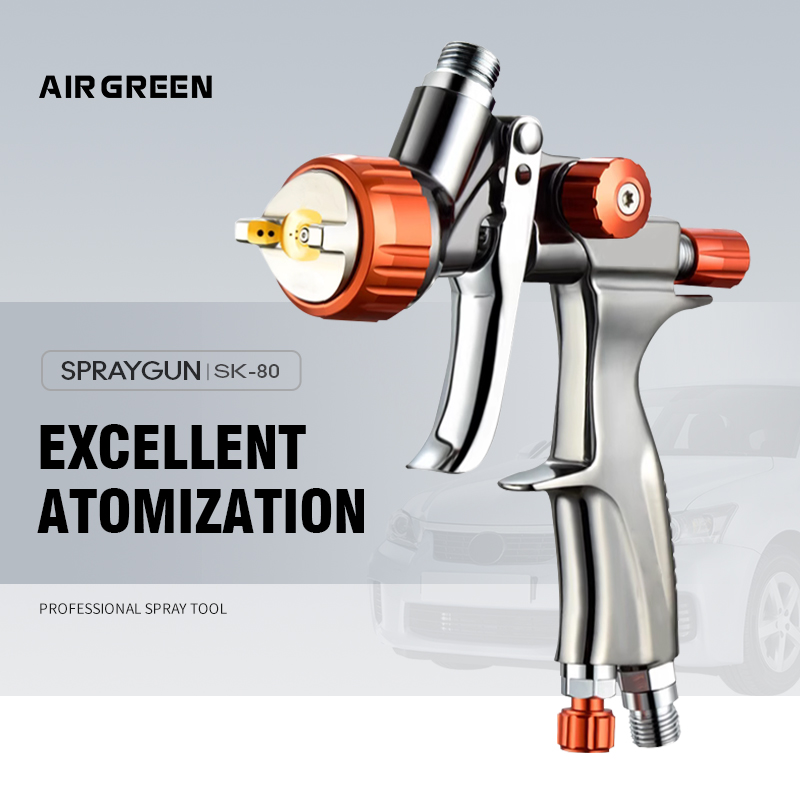

This professional LVLP spray gun uses low volume low pressure atomization technology for exceptional paint transfer efficiency. With its precision-machined components, adjustable spray pattern, and ergonomic design, it's suitable for automotive, furniture, and general refinishing applications.

Key Features & Specifications

• Feed Type: Gravity

• Atomization Type: LVLP (Low Volume Low Pressure)

• Nozzle Size: 1.5 mm (Options: 1.3, 1.4, 1.7, 2.0 mm)

• Nozzle Material: Stainless Steel

• Needle Material: Hardened Stainless Steel

• Air Cap Material: Precision Brass

• Gun Body: Aluminum Alloy with Polished Chrome Finish

• Ergonomic Handle: Anti-slip grip, fatigue-reducing

• Adjustable Knobs: Airflow, Fluid Flow, Pattern Width

• Air Consumption: 3.0–3.9 CFM (85–110 L/min)

• Operating Pressure: 2.0–3.5 bar (29–50 PSI)

• Suitable Paints: Water-based, Solvent-based, Clear Coats, Primers

• Spray Pattern Width: 180–320 mm

• Air Inlet Thread: M16×1.5

• Cup Capacity: 600 cc

• Transfer Efficiency: Up to 65%

• Low Overspray for Cleaner Work Environment

• Applications: Automotive, Woodwork, Marine, Industrial

• Use Scenarios: Spot repair, full panel, large area coating

• Spray Pattern: Round to fan adjustable

• Gun Weight: 370–450 g

• Cleaning: Compatible with most standard gun cleaners

• Surface Finish: Chrome-plated anti-corrosion

• Interchangeable Parts: Nozzles, Needles, Air Caps

• Trigger Mechanism: Two-stage (air first, then fluid)

• Compressor Friendly: Works with smaller air compressors

• Anti-Slip Handle: Enhanced comfort and control

• Certifications: CE / ISO9001 / GS

• Corrosion Resistance: All wetted parts solvent-compatible

• Supports both water and solvent paints

• Optional Tip Sizes: For different viscosity coatings

• Easy Pattern Adjustments

• Fine Atomization: Ideal for clear coats & fine finishes

• Low Paint Consumption: Cost-effective

• Easy Maintenance: Replaceable parts

• OEM Customization Available

• Color-coded Knobs for Identification

• Working Temp Range: Up to 50℃ (depending on paint type)

• Compatible Materials: Wood, metal, plastic, fiberglass

• Inlet Size: Standard 1/4"

• Highly Maneuverable: For shop and on-site jobs

• Fluid Output Control: Fine-tuned adjustments

• Airflow Control: Precision atomization control

• Fan Width Control: Easily adjustable pattern size

• Maintenance Schedule: Replace nozzle/needle as needed

• Labeling: Marked with model, nozzle size, pressure guide

• Accessory Compatibility: Filters, regulators, dryers
