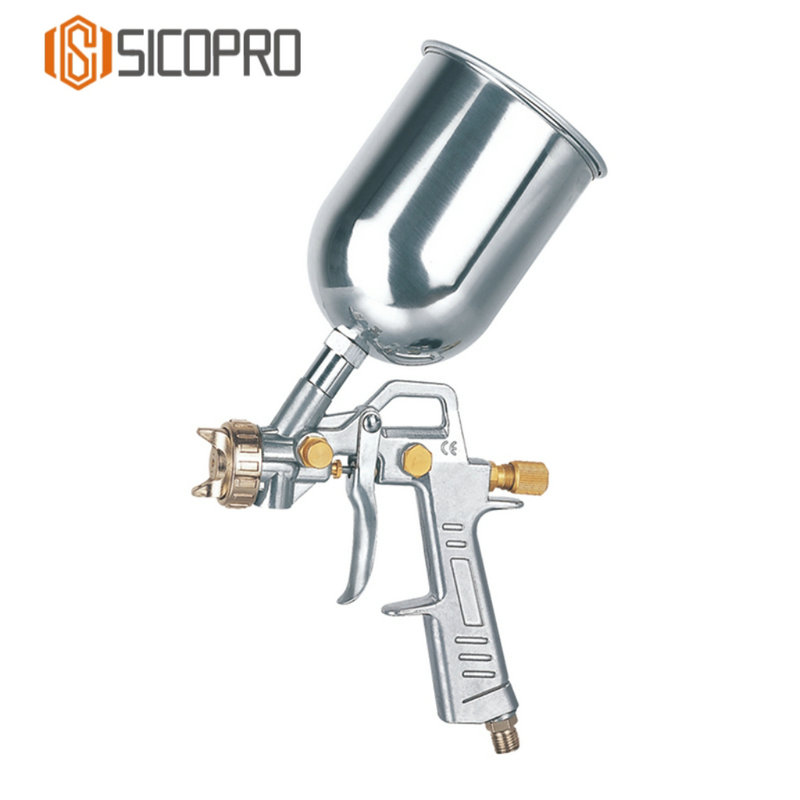

The TE-80G combines robust construction with precision spraying, suitable for large-surface applications in automotive and machinery painting.
Model: TE-80G
Spray Technology: Conventional / LVMP
Nozzle Sizes: 1.5mm / 1.8mm / 2.0mm
Air Pressure: 3.0 - 4.0 bar
Air Consumption: 11.0 - 13.0 CFM
Paint Output: 220 - 300 ml/min
Pattern Width: 240 - 280 mm
Feed Type: Gravity
Cup Capacity: 600ml stainless steel
Body Material: Aluminum with chrome finish
Air Cap: Precision brass
Nozzle/Needle: Stainless steel
Trigger: Two-stage progressive
Adjustments: Fluid, pattern, air
Connection: 1/4" NPT
Weight: 750g approx.
Applications: Automotive coating, machinery, metal, wood
Transfer Efficiency: ≥ 70%
Compatible Coatings: Primer, top coat, enamel, latex, solvent/water-based
Finish Quality: Consistent and smooth
Corrosion Resistance: Yes
Ergonomics: Balanced and comfortable grip
Noise Level: Medium
VOC Emission: Moderate
Durability: Built for frequent industrial use
Cleaning: Easy to clean and maintain
Included Accessories: Spanner, brush, filter
OEM/ODM: Supported
Logo Customization: Yes
Spray Distance: 200 - 250mm
Finish: Mirror chrome
Temperature Range: 5°C - 40°C
Safety Note: Use with proper PPE & ventilation
Warranty: 1 year
Usage Frequency: Daily heavy-duty
User: Professionals / Industrial Operators
Paint Type Support: Medium to high viscosity
