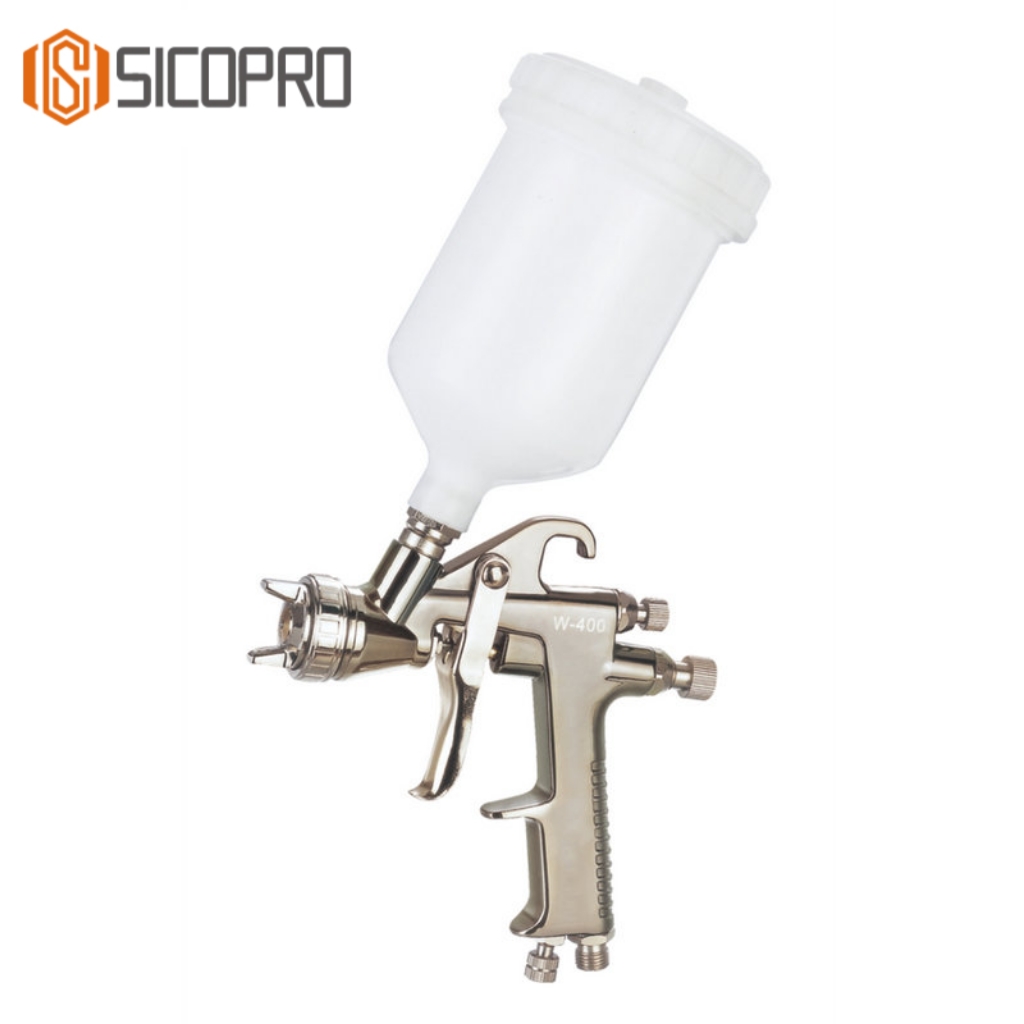

The W-400 spray gun delivers precise, high-quality atomization using HVLP technology, suitable for a wide range of coating applications.
Model: W-400
Feed Type: Gravity Feed
Spray Technology: HVLP (High Volume Low Pressure)
Nozzle Size: 1.3mm (optional 1.4mm, 1.5mm, 1.8mm)
Air Pressure: 2.0 - 3.5 bar (29 - 50 psi)
Air Consumption: 9.5 - 10.5 CFM
Pattern Width: 220 - 250 mm
Paint Output: 170 - 240 ml/min
Material Capacity: 600ml plastic cup
Body Material: Forged aluminum
Nozzle & Needle Material: Stainless Steel
Control Knobs: Fluid, Pattern, Air Pressure
Finish: Polished chrome
Trigger: Two-stage (Pre-spray & Full Spray)
Grip: Ergonomic non-slip handle
Connection Type: 1/4" NPT
Net Weight: Approx. 600g
Application: Automotive painting, furniture, metal, machinery
Spray Pattern: Fan pattern adjustable
Spray Distance: 150-200 mm
Cleaning: Easy disassembly for maintenance
Corrosion Resistance: Yes
Over-spray Reduction: High efficiency
Transfer Efficiency: ≥ 75%
Environment Friendly: Low VOC emissions
Durability: Industrial-grade construction
Cup Type: Top-mounted gravity cup
Compatible Paint Types: Water-based, solvent-based, clear coat, primer
Noise Level: Low
Certifications: CE
Color: Silver body with white cup
Included Accessories: Wrench, cleaning brush, filter
Surface Finish: Mirror polished
Packaging: Box with foam insert
Country of Origin: China
OEM Service: Available
Logo Customization: Supported
Usage Frequency: Daily / Professional
Warranty: 1 Year Limited Warranty
User Type: Professional / DIY Enthusiast
Temperature Range: 5°C to 40°C working environment
