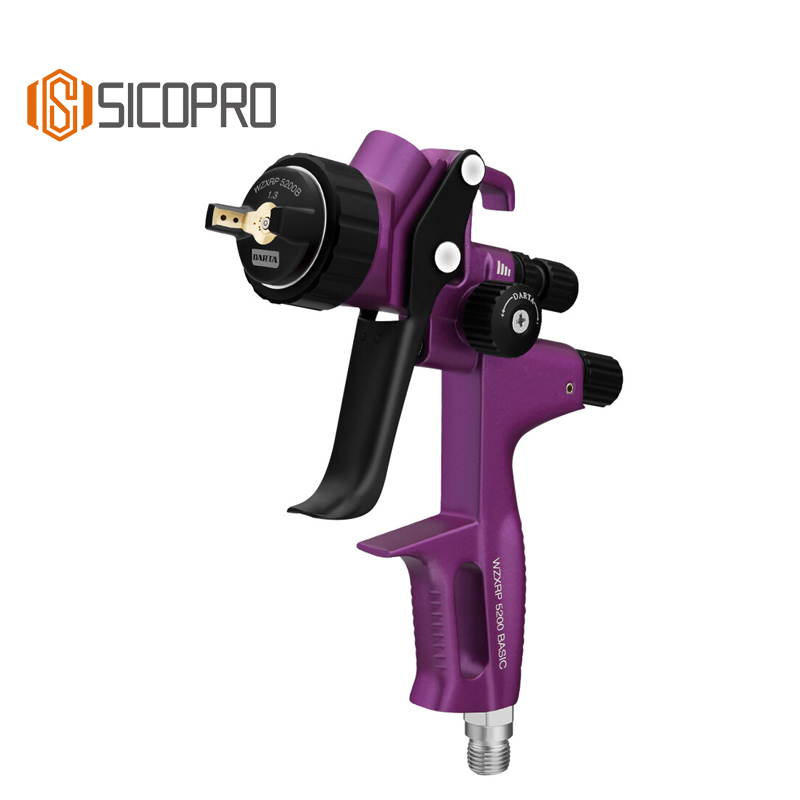

Type: LVLP Spray Gun
Nozzle Size: 1.3mm
Air Inlet: G1/4”
Material: Aluminum body with stainless steel nozzle
Paint Cup Capacity: 600ml (gravity feed)
Air Pressure: 1.5-2.5 bar
Air Consumption: 2.5-3.5 CFM
Application: Automotive, Furniture, Industrial Coating
Transfer Efficiency: ≥ 75%
Spray Pattern: Adjustable (fan/pencil)
Control Knobs: Fluid, pattern, air pressure
Usage: Fine finish & refinishing
Trigger Type: Manual two-stage
Weight: Approx. 480g
Surface Treatment: Anodized
Color: Customizable (Purple, Black, Blue, Grey)
Durability: Corrosion and wear resistant
Noise Level: Low
Compatible Paints: Solvent & water-based
Technology: Air atomizing
Grip: Ergonomic, non-slip
Maintenance: Easy disassembly for cleaning
Precision: High atomization with minimal overspray
Environmentally Friendly: Low overspray, low VOC emission
Thread: BSP/NPT compatible
Seal Type: PTFE for solvent resistance
Needle & Nozzle: Stainless steel hardened
Handle Texture: Matte anodized
Packaging: Boxed with accessories
Accessories: Wrench, brush, manual
Connection Type: Gravity feed
Spraying Distance: Optimal 20cm
Warranty: 1 year limited
OEM/ODM: Supported
Compliance: CE certified
Suitable for: Cars, furniture, machinery
Operation Mode: Pneumatic
Flow Control: Independent
Spray Width: Adjustable up to 280mm
Min. Paint Output: 120ml/min
