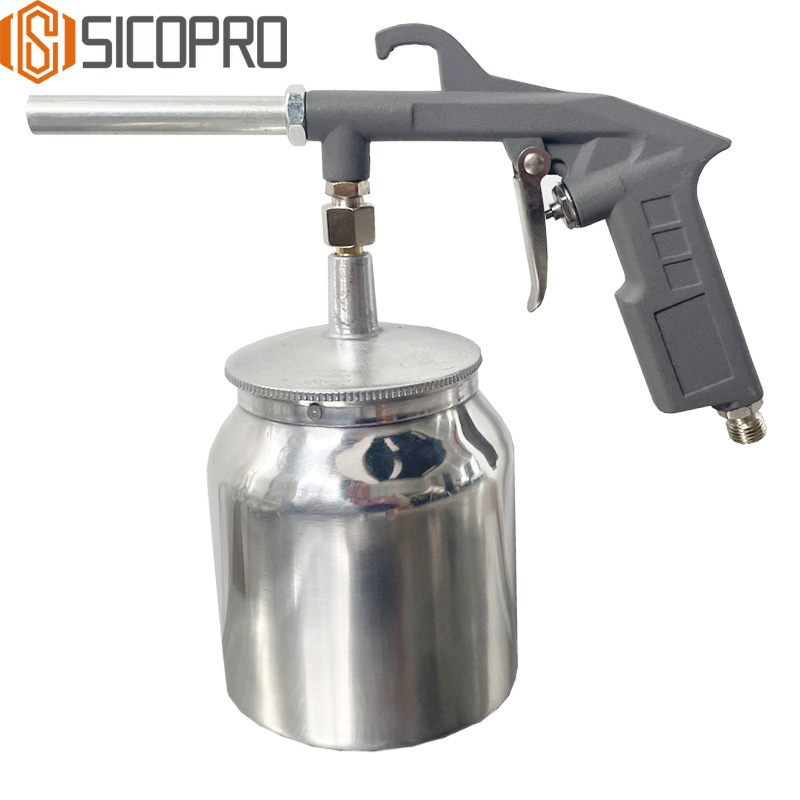

Model: PS-15R
Type: LVLP Industrial Spray Gun
Nozzle Size: 2.5mm (Optional: 1.8mm / 2.0mm)
Cup Capacity: 1000ml Aluminum Bottom Feed Cup
Material: Stainless Steel & Aluminum
Trigger Type: Single-action
Air Inlet: 1/4" NPT
Working Pressure: 50-70 PSI
Air Consumption: Approx. 4.0-5.0 CFM
Application: Adhesives, Detergents, Undercoating, Cleaning Fluids
Finish: Textured matte handle
Grip Material: Nylon + ABS Composite
Spray Type: Suction feed
Durability: Designed for industrial use
Adjustable Spray Pattern: Yes
Fan Control: Top-mounted knob
Fluid Control: Yes
Corrosion Resistant: Yes
Ergonomics: Comfortable large handle
Cleaning Access: Easy disassembly
Seal Type: Chemical-resistant PTFE
Weight: Approx. 950g
Spray Distance: 180-250mm
Surface Finish: Uniform medium texture
Noise Level: Medium
Paint Types: High-viscosity and water-based materials
Usage Scenario: Car service, heavy-duty workshops
Fluid Path: Stainless steel compatible
Cleaning Fluid Compatibility: Yes
Viscosity Range: Medium to high
Disassembly Time: < 2 minutes
Air Adjustment: Bottom mounted
Regulator Compatibility: Optional
Pressure Gauge: Not included
Maintenance Level: Low
Trigger Durability: Over 200,000 cycles
Handle Texture: Anti-slip
Connection Type: Standard air hose
Mount Type: Hanging hook available
Safety Valve: Optional external
Certification: CE
