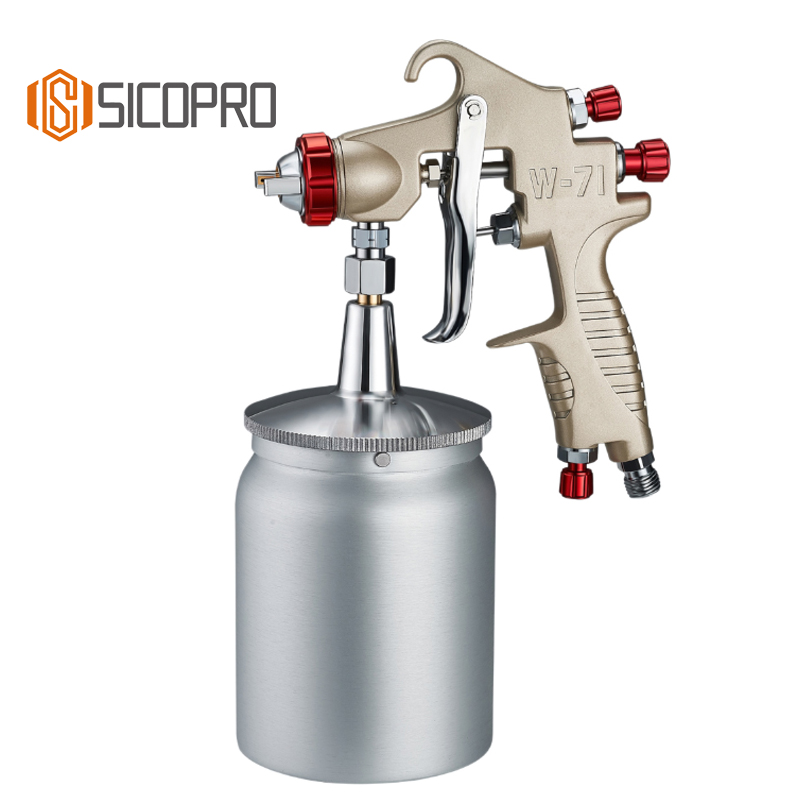

Model: W-71
Type: Suction Feed Spray Gun
Application: Automotive painting, woodworking, industrial use
Nozzle Size: 1.5mm
Paint Cup Capacity: 1000ml (suction feed aluminum cup)
Material: Aluminum gun body with stainless steel nozzle/needle
Feed Type: Suction
Air Inlet: G1/4"
Operating Pressure: 3.0-4.0 bar
Air Consumption: 4.5-6.0 CFM
Transfer Efficiency: High
Pattern Width: 200-240mm
Trigger: Dual action
Surface Finish: Anodized gold body with red adjustment knobs
Spray Type: Fan pattern adjustable
Weight: Approx. 700g
Noise Level: Low
Durability: Long-lasting with corrosion resistance
Precision: Suitable for base coat, clear coat, primer
Compatible Paints: Solvent and water-based
Cleaning: Manual disassembly supported
Air Cap Material: Brass
Seal Type: Teflon
Grip: Ergonomic non-slip design
Pressure Regulator: Compatible (not included)
Use Cases: Cars, trucks, wooden surfaces, metal parts
Fan Width Control: Yes
Fluid Adjustment: Yes
Spray Distance: 15-25cm
Certification: CE
Temperature Use Range: -10°C to 50°C
Color: Gold body with silver cup
Suitable For: Professionals and semi-pro users
Maintenance: Easy to clean
Accessories: Optional (needle/nozzle sets)
Storage: Box or case recommended
Paint Viscosity: Medium to low viscosity materials
