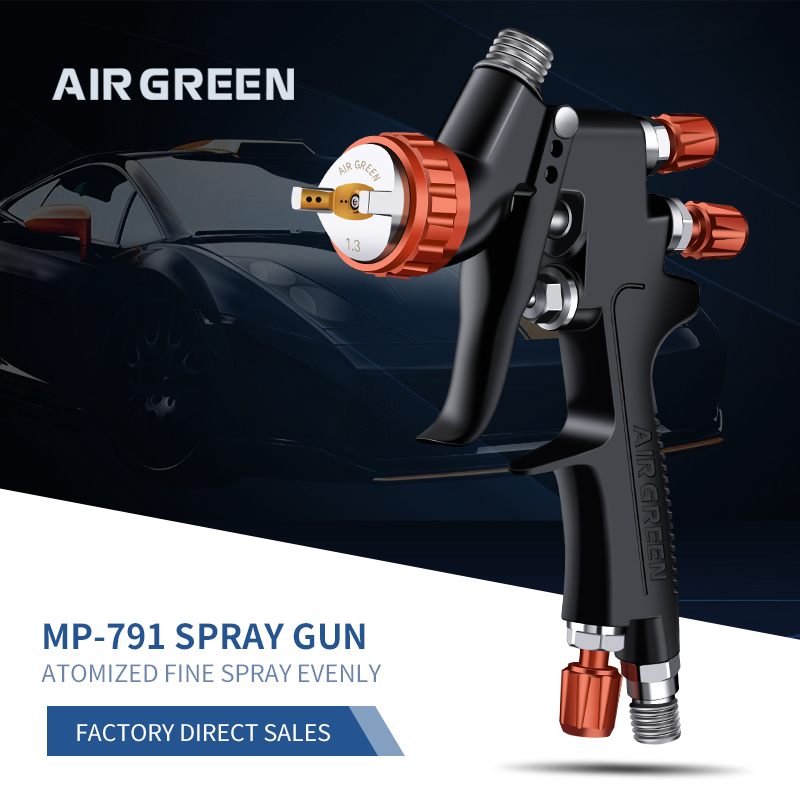

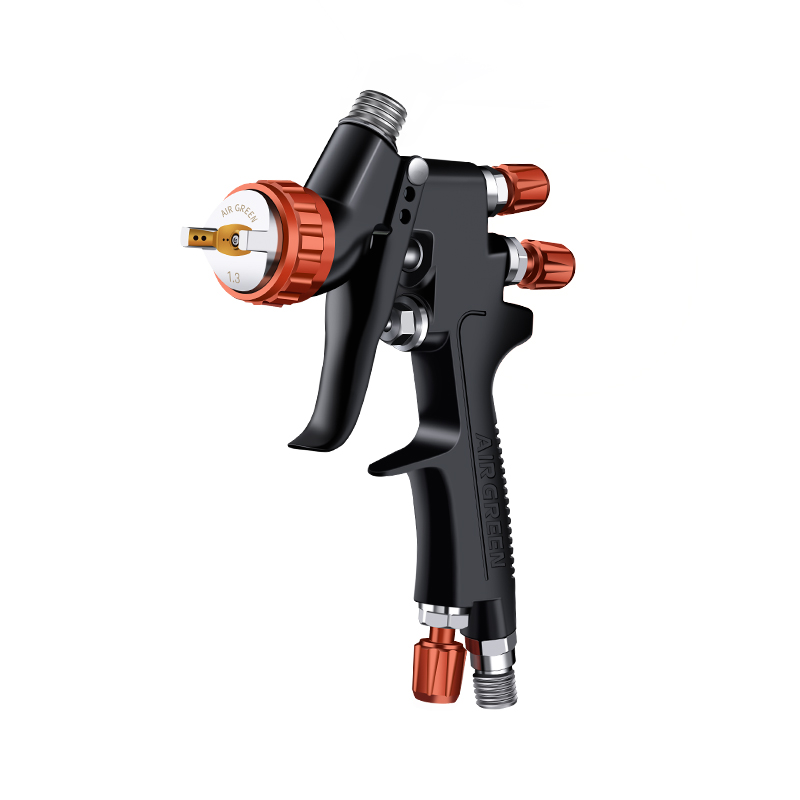

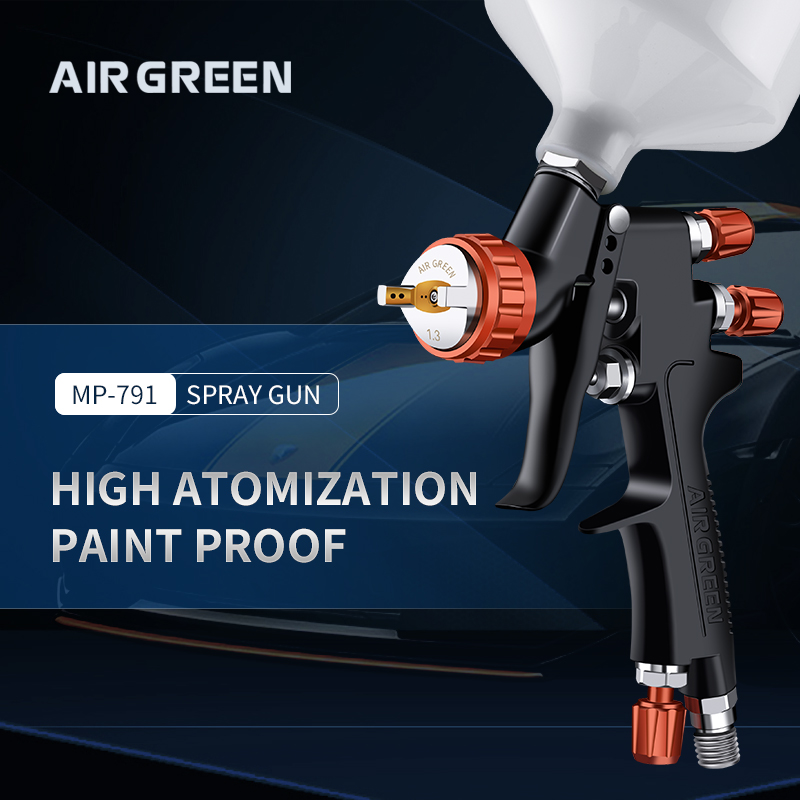

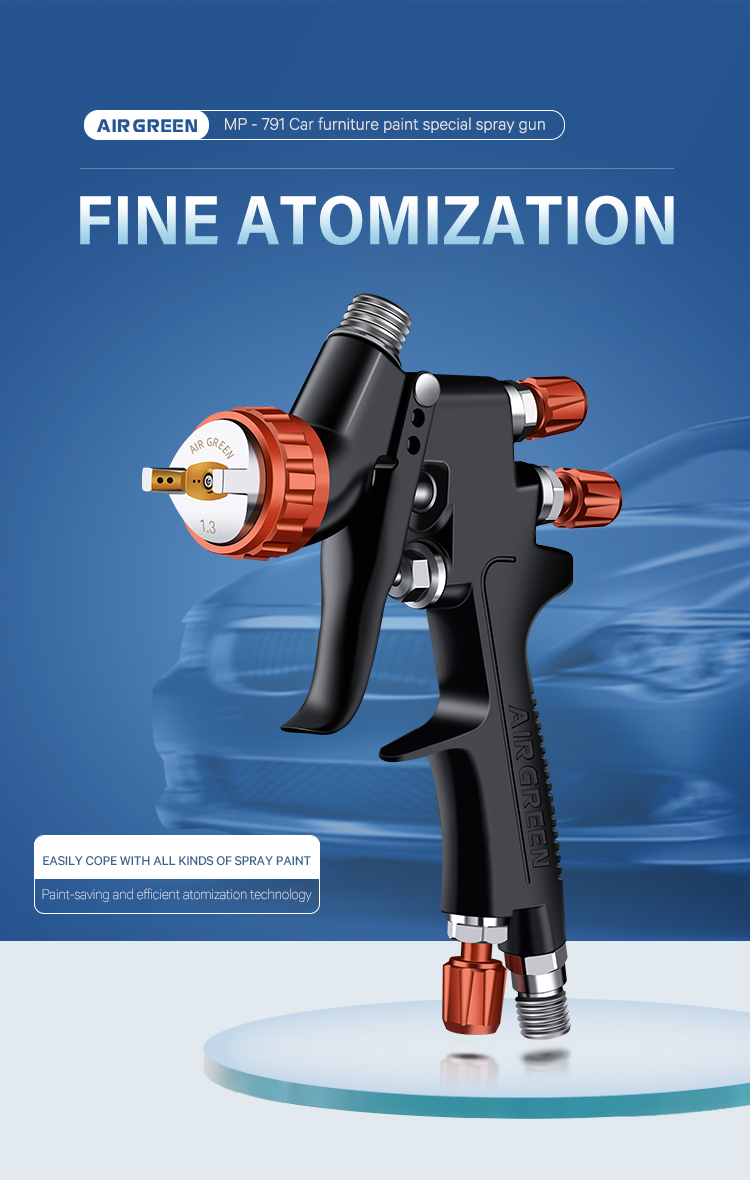

Brand: AirGreen

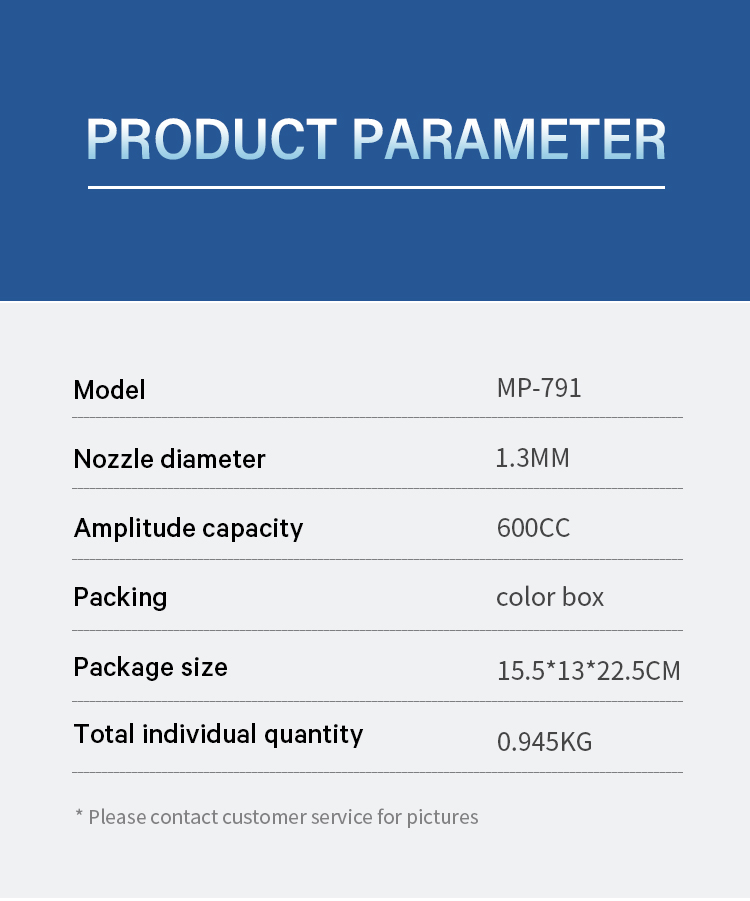

Model: Red Control Series (1.3mm)
Spray Type: Gravity Feed HVLP
Nozzle Size: 1.3mm (pre-installed)
Nozzle Material: Stainless Steel

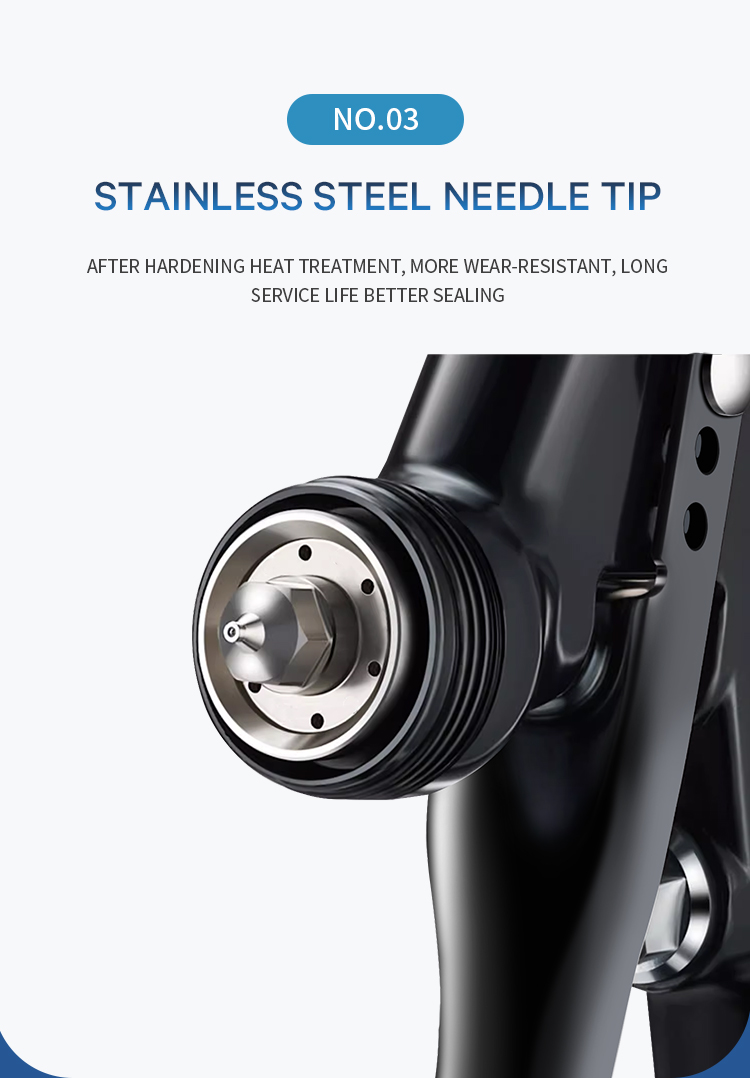

Needle Material: Stainless Steel
Body Material: Anodized Aluminum Alloy
Color: Black Body with Red Anodized Knobs
Cup Material: Semi-transparent Durable Plastic
Cup Capacity: 600ml
Working Pressure: 2.0 – 3.5 bar
Air Consumption: 260 – 290 L/min
Air Inlet Size: G1/4”
Spray Width: 180mm – 250mm
Grip: Ergonomic, Anti-Slip
Trigger: Double-Action Smooth Pull

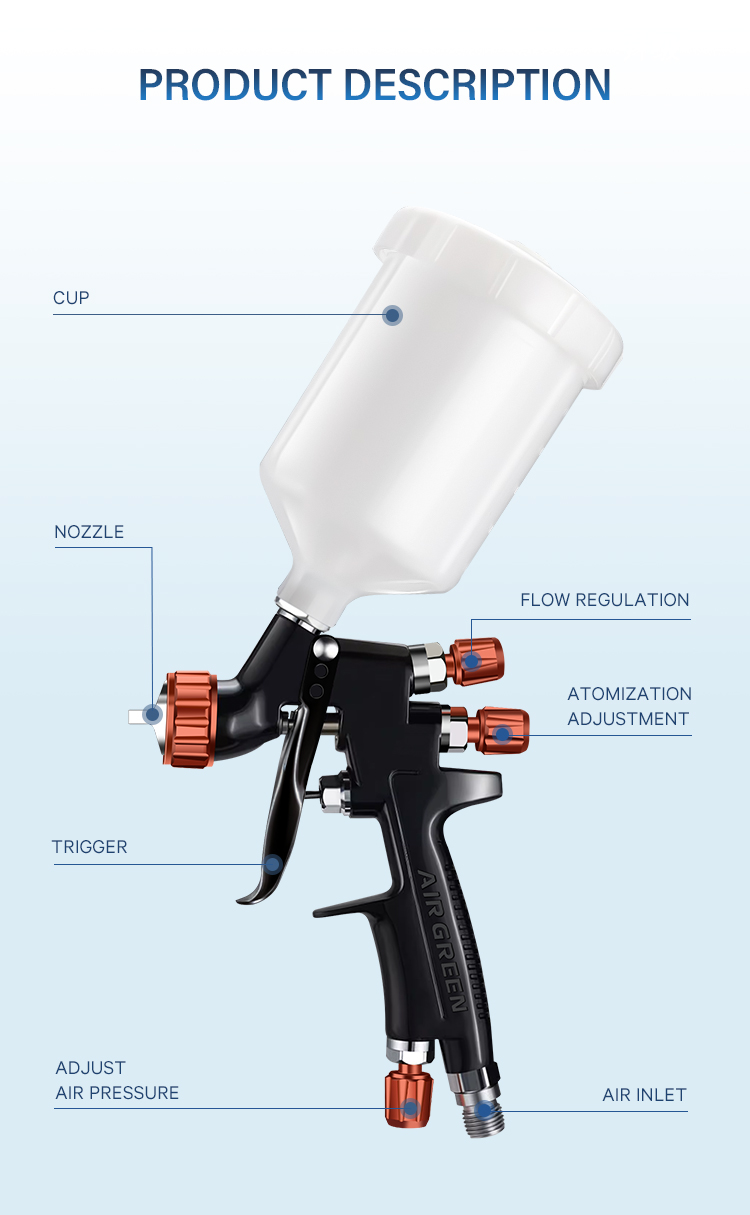

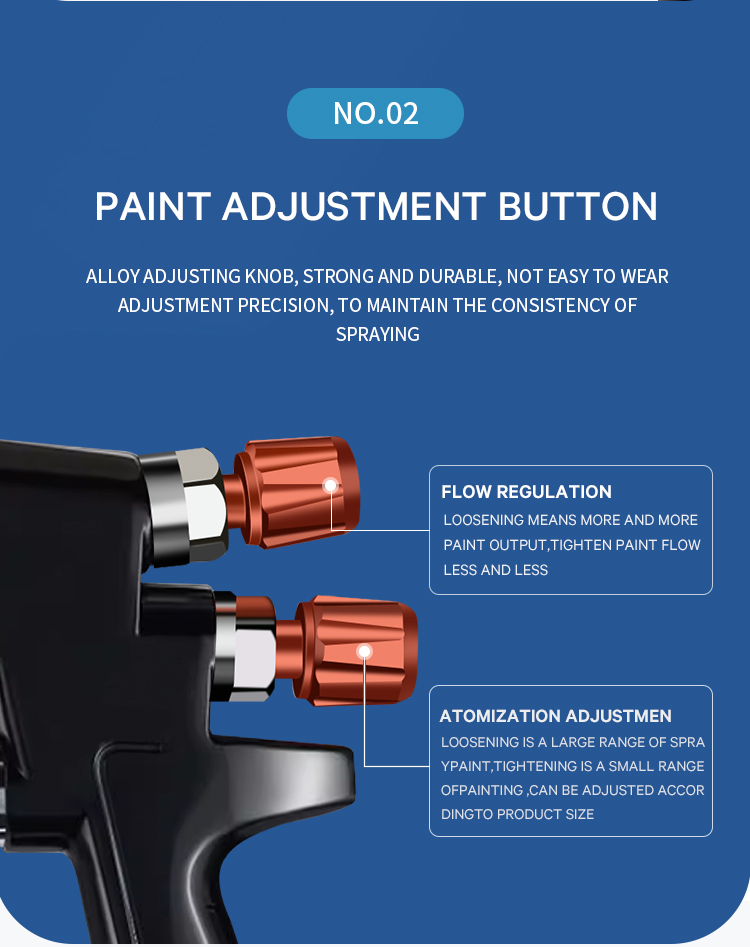

Control Knobs: Fluid, Fan, Air Pressure (Red)
Paint Types Supported: Water-based, Solvent-based, Basecoats, Clearcoats, Primers
Application: Automotive, Woodworking, Metal, Industrial
Technology: HVLP – High Volume Low Pressure
Transfer Efficiency: High – up to 80%
Atomization Quality: Ultra-Fine Mist
Maintenance: Easy Cleaning, Tool-Free Disassembly
Durability: Over 5 Years
Surface Finish: Sandblasted Black
Sealing Performance: Leak-proof

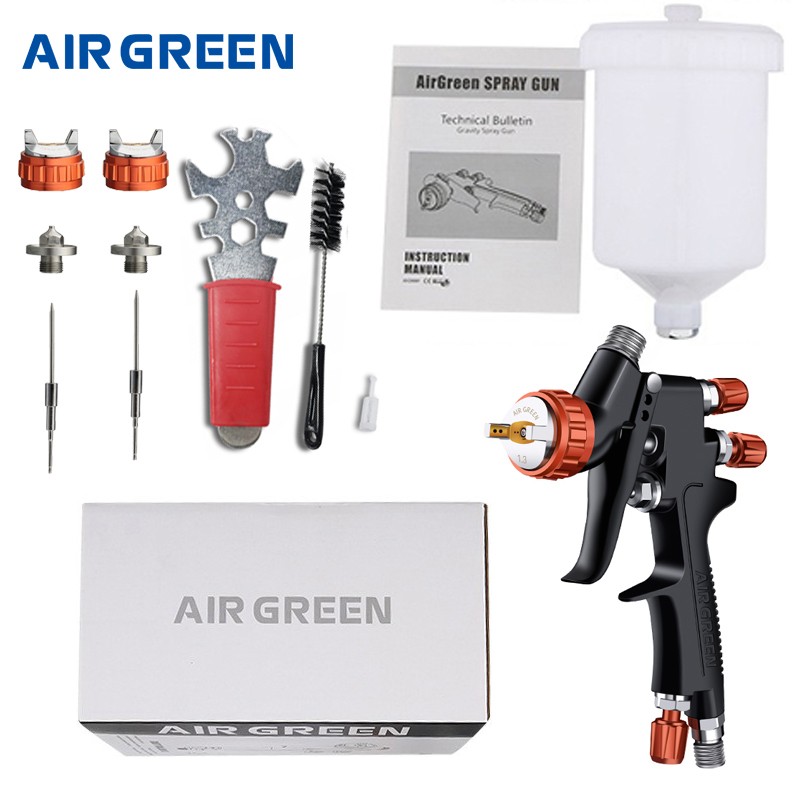

Kit Includes: Spray Gun, 2 Extra Nozzles, 2 Extra Needles, 2 Red Air Caps, Wrench, Brush, Dropper, User Manual
Cleaning Tools: Steel Brush, Plastic Dropper
Wrench: Multi-functional for disassembly
Packaging: AIR GREEN branded box
Weight: Approx. 500g (with accessories)
Temperature Range: 5°C – 50°C
Production: CNC Machining

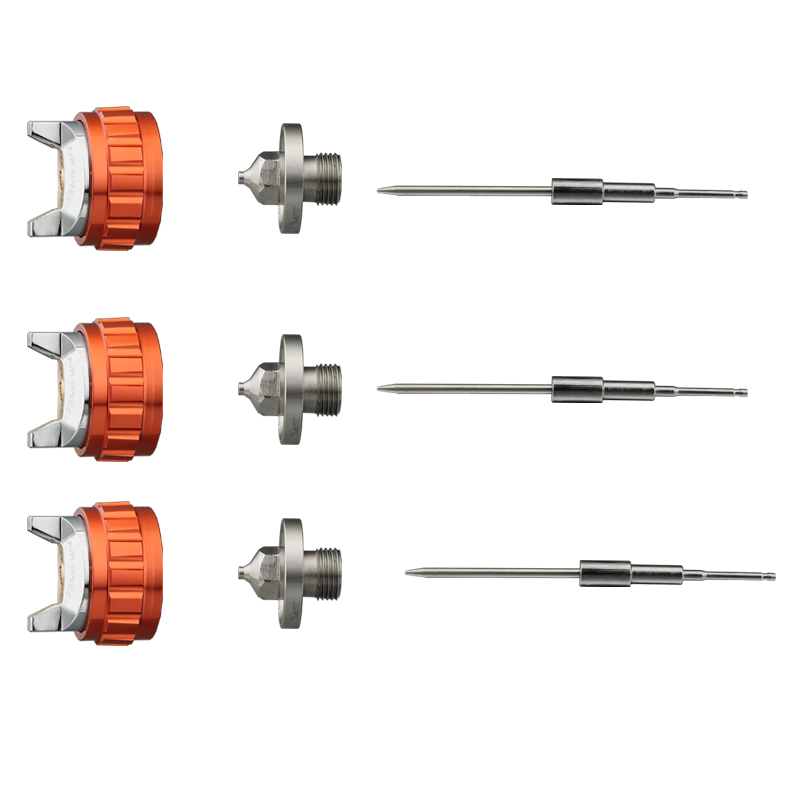

Nozzle Options: Interchangeable (1.3mm, 1.4mm, 1.5mm)
Eco Standard: RoHS Compliant
Use Level: Professional & DIY
Origin: Wenzhou, China

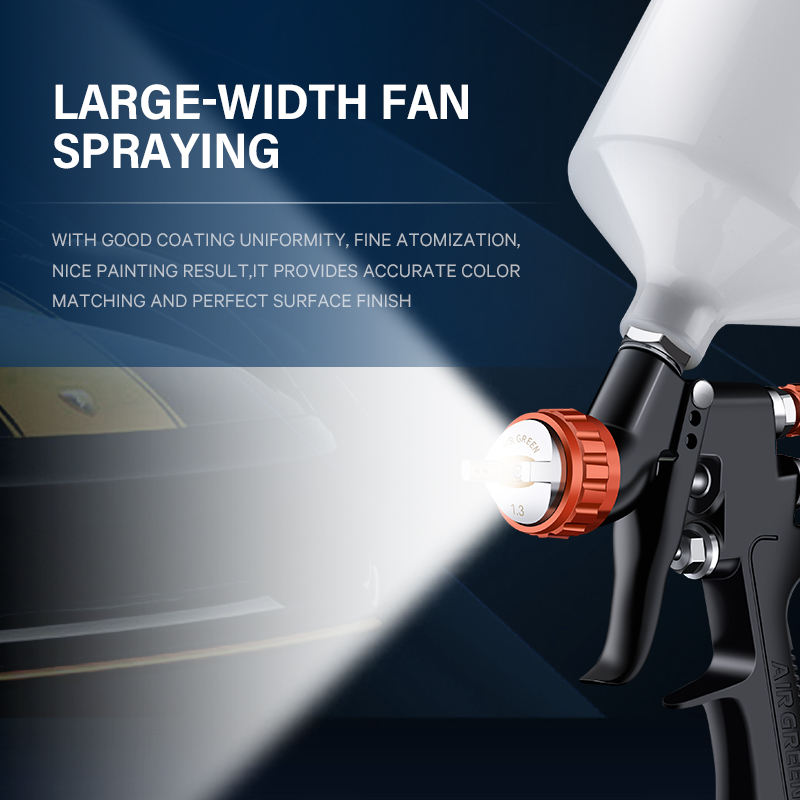

Fan Pattern: Adjustable Circular to Wide Oval
Connection: Quick Coupler Compatible
Finish Quality: High Gloss & Uniform
Anti-Corrosion: Yes
