| Attribute | Details |
|---|
| 1. Product Type | Pneumatic paint spray gun |
| 2. Model | H-827P |
| 3. Spray Technology | HVLP |
| 4. Feed Type | Gravity feed |
| 5. Cup Capacity | 600 cc |
| 6. Cup Material | Metal cup |
| 7. Nozzle Sizes | 1.4 / 1.7 / 2.0 / 2.5 mm |
| 8. Nozzle Design | Interchangeable nozzle sizes |
| 9. Spray Patterns | 3 adjustable patterns |
| 10. Vertical Pattern | For tall surfaces and vertical work |
| 11. Horizontal Pattern | For wide surfaces and horizontal work |
| 12. Round Pattern | For detail work, small parts and touch-ups |
| 13. Pattern Control | Adjustable pattern control knob |
| 14. Fluid Control | Adjustable fluid delivery |
| 15. Air Control | Adjustable pneumatic input |
| 16. Air Inlet | G1/4 inch |
| 17. Air Consumption | 2.5–3.5 CFM |
| 18. Specification Working Pressure | 3.5 bar / 50 PSI shown in product specifications |
| 19. Typical Inlet Setting | 20–30 PSI / 1.4–2.1 bar for many projects; adjust to coating requirements |

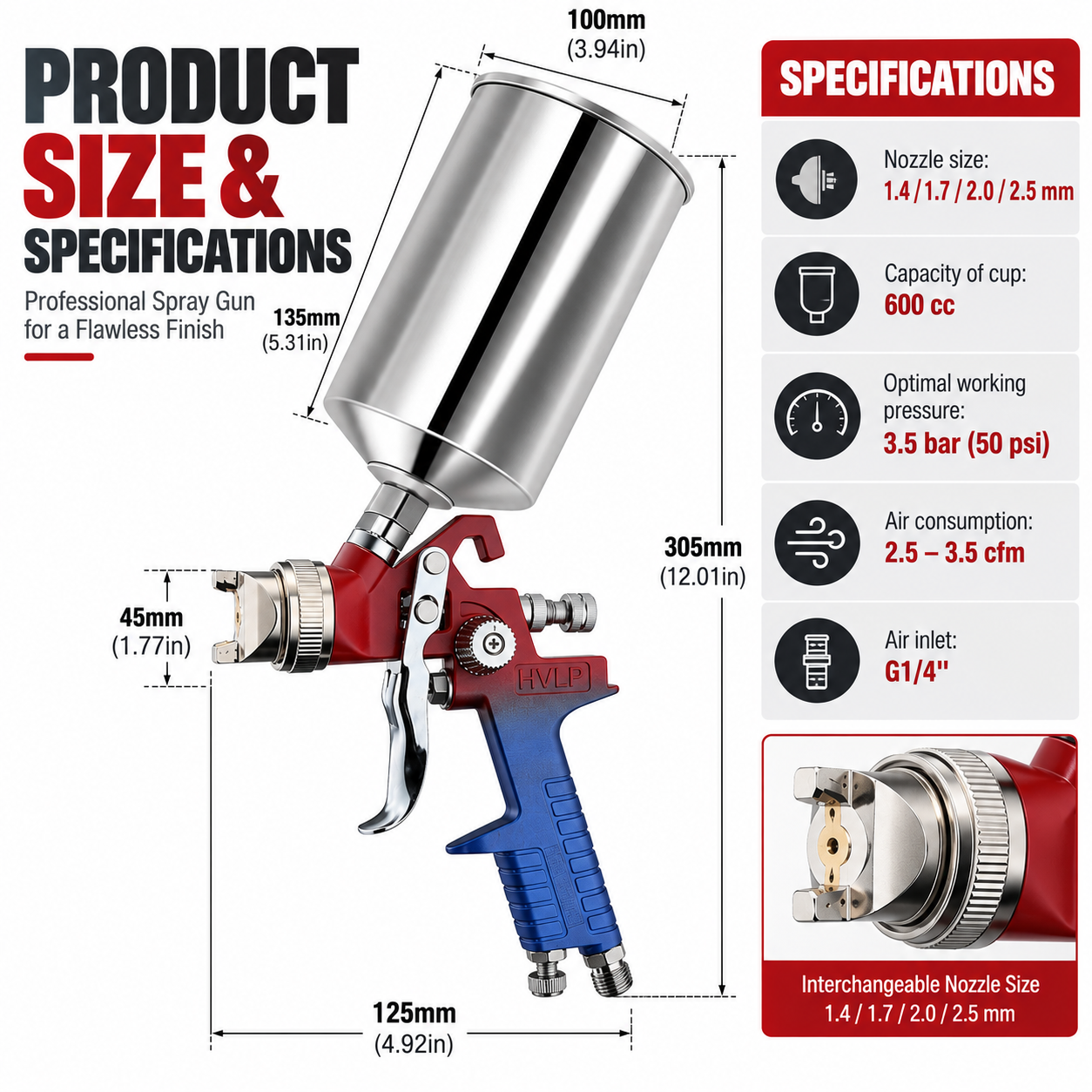

| 20. Overall Height | Approx. 305 mm / 12.01 in |
| 21. Gun Length | Approx. 125 mm / 4.92 in |
| 22. Cup Top Width | Approx. 100 mm / 3.94 in |
| 23. Cup Section Height | Approx. 135 mm / 5.31 in |
| 24. Front Head Dimension | Approx. 45 mm / 1.77 in |
| 25. Ideal Spray Distance | 15–20 cm / 6–8 in |
| 26. Recommended Pass Overlap | About 50% |
| 27. Atomization | Fine atomization for even coating distribution |
| 28. Finish Goal | Smooth, professional-looking finish |
| 29. Power Source | Compressed air |
| 30. Trigger Type | Manual trigger control |
| 31. Grip Style | Textured pistol grip for controlled handling |
| 32. Body Color | Red and blue with metallic components |
| 33. Coating Viscosity | Suitable for most low-to-medium viscosity coatings |
| 34. Automotive Paint | Suitable |
| 35. Primer | Suitable with proper nozzle and viscosity setup |
| 36. Clear Coat | Suitable |
| 37. Enamel | Suitable |
| 38. Lacquer | Suitable |
| 39. Urethane Coating | Suitable when compatible with spray equipment |
| 40. Auto Refinishing | Recommended application |
| 41. Furniture | Suitable application |
| 42. Cabinets | Suitable application |
| 43. Woodworking | Suitable application |
| 44. Metal Projects | Suitable application |
| 45. Motorcycle Parts | Suitable application |
| 46. DIY Projects | Suitable for experienced DIY users |
| 47. Paint Filtration | Use a paint filter for cleaner spraying |
| 48. Cleaning Frequency | Clean after every use |
| 49. Cleaning Method | Empty paint, rinse with appropriate solvent, clean nozzle/needle/cup, then dry |
| 50. Spray Technique | Move evenly at a consistent distance |
| 51. Coat Technique | Apply thin, even coats |
| 52. Included Spray Gun | 1 × HVLP spray gun |
| 53. Included Cup | 1 × 600cc metal cup |
| 54. Included Wrench | 1 × multi-function wrench |
| 55. Included Cleaning Brush | 1 × cleaning brush |
| 56. Included Air Inlet Filter | 1 × air inlet filter |
| 57. Included Air Connector | 1 × G1/4 inch air connector |
| 58. Included Manual | 1 × instruction manual |
