HOME >> ACCESSORIES >> SC-13 Five-Way Pneumatic Air Manifold with Quick Couplers
  • SC-13 Five-Way Pneumatic Air Manifold with Quick Couplers
    ❤ Add to collection

  • SC-13 Five-Way Pneumatic Air Manifold with Quick Couplers

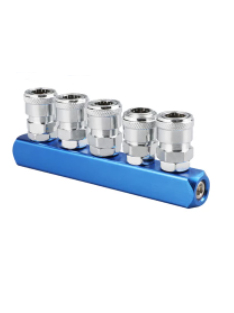

    A compact five-outlet compressed-air manifold with plated quick couplers mounted on a blue distribution body. The SC-13 allows multiple compatible spray guns, hoses and pneumatic tools to connect to one regulated air source in workshops, garages and coating stations.

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consult
Description
A compact five-outlet compressed-air manifold with plated quick couplers mounted on a blue distribution body. The SC-13 allows multiple compatible spray guns, hoses and pneumatic tools to connect to one regulated air source in workshops, garages and coating stations.

SC-13 Five-Way Pneumatic Air Manifold

The SC-13 distributes one compressed-air supply across five quick-connect outlets. Its compact bar-style body helps organize multiple air lines for spray-painting, maintenance and workshop applications.

Product Attributes

AttributeDetails
1. ModelSC-13
2. Product typeFive-way pneumatic air manifold
3. Outlet quantity5 quick-coupler outlets
4. Inlet quantity1 common air inlet
5. Body layoutStraight distribution bar
6. Main functionDistribute one air source to five lines
7. Body materialMetal manifold body
8. Body colorBlue
9. Coupler materialPlated metal
10. Coupler finishBright silver-colored finish
11. Outlet styleFemale quick-coupler sockets
12. Inlet styleThreaded port as shown
13. Thread sizeConfirm exact specification before ordering
14. Coupler profileUse matching pneumatic plugs
15. Service mediumCompressed air
16. Spray gun useConnect multiple compatible spray-gun lines
17. Hose useConnect multiple compatible air hoses
18. Compressor useInstall downstream of a compressor or regulator
19. Tool useSuitable for blow guns, inflators and light air tools
20. Automotive useBody-shop and vehicle refinishing stations
21. Furniture useFurniture and cabinet coating workshops
22. Industrial useLight maintenance and production air distribution
23. DIY useGarage and hobby compressor setups
24. Simultaneous connectionsUp to five tools or hoses may remain connected
25. AirflowDepends on inlet bore, supply pressure and active outlets
26. Pressure behaviorFlow and pressure are shared among active outlets
27. Working pressureConfirm manifold and coupler ratings
28. Temperature rangeDepends on body, seals and air conditions
29. Air preparationUse clean, dry and regulated compressed air
30. Painting recommendationInstall moisture and oil filtration upstream
31. InstallationConnect common inlet to a compatible air source
32. MountingBench or fixed-line placement according to installation
33. Plug connectionInsert matching plugs fully into couplers
34. Leak testingPressurize gradually and inspect every joint
35. DisconnectionRelease pressure before service or removal
36. CleaningKeep couplers free from paint, dust and debris
37. InspectionCheck manifold body, inlet, sleeves and seals
38. MaintenanceUse approved pneumatic lubricant if required
39. SafetyDo not exceed confirmed pressure rating
40. Damage warningReplace or service if cracked, loose or leaking
41. StorageStore clean, dry and depressurized
42. PackagingBulk or retail packaging available
43. OEM serviceCustom outlet count, color and couplers may be available
44. BrandingPrivate-label options subject to order quantity
45. Package contents1 x SC-13 five-way manifold assembly

Installation Guidance

  1. Switch off the compressor and depressurize the line.

  2. Confirm inlet thread and coupler profile.

  3. Install the manifold securely and connect matching plugs.

  4. Restore pressure gradually and test all outlets for leakage.
