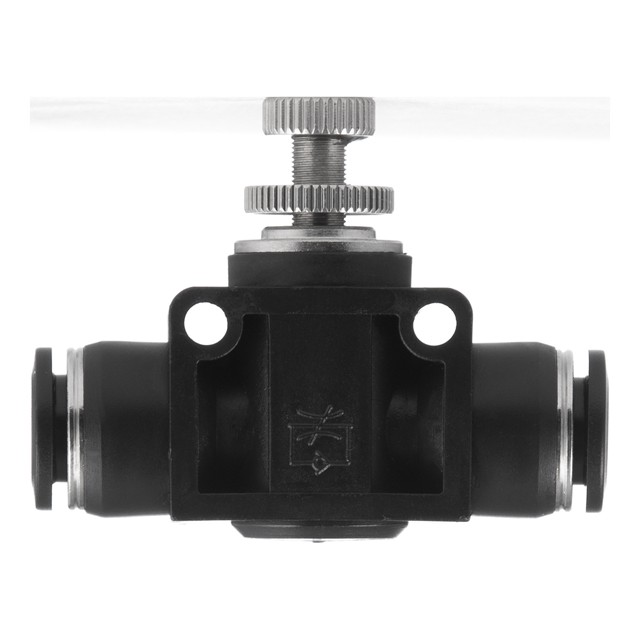

The KS-10 combines two push-to-connect tube ports with a manually adjustable needle-style control screw. It is intended for regulating airflow in compatible pneumatic lines used with spray equipment, cylinders, workshop machinery and maintenance systems.
| Attribute | Details |
|---|---|
| 1. Model | KS-10 |
| 2. Product type | Inline pneumatic flow-control valve |
| 3. Connection layout | Tube to tube |
| 4. Port quantity | 2 push-in ports |
| 5. Control method | Manual adjustment screw |
| 6. Locking feature | Knurled lock nut |
| 7. Tube size | Confirm compatible outside diameter |
| 8. Main body material | Engineering polymer with metal control parts |
| 9. Body color | Black with silver-colored screw |
| 10. Release rings | Push collets at both ends |
| 11. Service medium | Compressed air |
| 12. Main function | Adjust airflow through a pneumatic line |
| 13. Tube connection | Push-to-connect |
| 14. Tube release | Press collet after depressurizing |
| 15. Adjustment direction | Turn screw to increase or reduce flow |
| 16. Spray gun use | Suitable for compatible auxiliary air circuits |
| 17. Cylinder use | Suitable for light pneumatic actuator speed control |
| 18. Compressor use | Suitable for regulated compressed-air lines |
| 19. Industrial use | Light automation and maintenance systems |
| 20. Automotive use | Body-shop and garage pneumatic equipment |
| 21. Compatible tubing | PU, PE or nylon pneumatic tubing |
| 22. Working pressure | Confirm rated value before installation |
| 23. Temperature range | Depends on seals, tubing and environment |
| 24. Flow range | Depends on port size and production specification |
| 25. Adjustment type | Fine mechanical restriction |
| 26. Directional behavior | Confirm one-way or two-way control version before ordering |
| 27. Seal type | Internal pneumatic seals |
| 28. Mounting holes | Integrated body holes as shown |
| 29. Installation tool | No wrench required for tube connection |
| 30. Tube preparation | Cut tube ends squarely and remove burrs |
| 31. Tube insertion | Push fully to the internal stop |
| 32. Adjustment benefit | Helps tune airflow for the application |
| 33. Locking benefit | Lock nut helps retain the selected setting |
| 34. Maintenance benefit | Tubes can be released quickly |
| 35. Reusability | Reusable while seals, collets and screw remain sound |
| 36. Leak prevention | Use correct tube size and full insertion |
| 37. Inspection | Check ports, seals, screw and lock nut |
| 38. Cleaning | Keep free from dust, paint and debris |
| 39. Safety | Depressurize before installation or adjustment service |
| 40. Handling caution | Do not force the adjustment screw past its stop |
| 41. Damage warning | Replace if cracked, stuck or leaking |
| 42. Storage | Store clean and dry |
| 43. Packaging | Bulk or retail packaging available |
| 44. OEM service | Custom port size and packaging may be available |
| 45. Package contents | 1 x KS-10 inline flow-control valve |
Depressurize the air system.
Confirm tube size and airflow requirements.
Insert both square-cut tubes fully.
Restore pressure, adjust gradually and lock the selected setting.
