  • JS-3 Three-Way Pneumatic Air Splitter Manifold with Quick Couplers

    A compact three-way compressed-air distribution manifold fitted with three quick couplers for connecting multiple compatible spray guns, hoses and pneumatic tools to one air source. The three-branch design is suitable for body shops, garages and workshop air stations.

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consult
Description
A compact three-way compressed-air distribution manifold fitted with three quick couplers for connecting multiple compatible spray guns, hoses and pneumatic tools to one air source. The three-branch design is suitable for body shops, garages and workshop air stations.

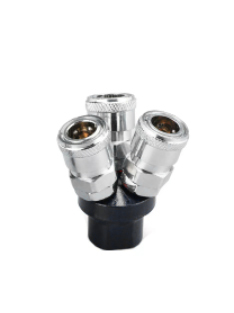

JS-3 Three-Way Pneumatic Air Splitter Manifold

The JS-3 divides one compressed-air supply into three quick-connect outlets. It provides a convenient distribution point for multiple workshop tools while helping reduce repeated hose changes at the compressor or regulator.

Product Attributes

AttributeDetails
1. ModelJS-3
2. Product typeThree-way pneumatic air splitter
3. Outlet quantity3 quick-coupler outlets
4. Inlet quantity1 common air inlet
5. Body layoutThree-branch manifold
6. Main functionDistribute one air line to three connections
7. Main materialMetal couplers with molded manifold body
8. Body colorBlack
9. Coupler finishBright silver-colored plating
10. Service mediumCompressed air
11. Outlet styleFemale quick-coupler sockets
12. Inlet styleConfirm thread or plug specification before ordering
13. Coupler profileUse matching pneumatic plugs
14. Spray gun useSuitable for compatible spray-gun air lines
15. Hose useSuitable for multiple compatible air hoses
16. Air tool useSuitable for blow guns, inflators and light tools
17. Compressor useConnects to a compatible regulated air supply
18. Automotive useBody-shop and vehicle refinishing systems
19. Furniture useFurniture and cabinetry spray-finishing
20. Industrial useLight maintenance and production air distribution
21. Connection benefitAllows several tools to remain connected
22. Workflow benefitReduces repeated coupler changes
23. PortabilityCompact and easy to position
24. AirflowDepends on inlet size, couplers and pressure
25. Working pressureConfirm rated value for the selected version
26. Temperature rangeDepends on body materials and internal seals
27. Simultaneous useUp to three outlets may be connected
28. Pressure behaviorFlow and pressure are shared among active outlets
29. Air preparationUse clean, dry and regulated compressed air
30. Painting recommendationInstall water and oil filtration upstream
31. InstallationConnect the common inlet to the air source
32. Plug connectionInsert compatible plugs fully into the couplers
33. Leak testPressurize slowly and inspect every connection
34. DisconnectionRelease pressure before service or removal
35. CleaningKeep couplers free from overspray and dust
36. InspectionCheck sleeves, seals and manifold body regularly
37. MaintenanceUse approved pneumatic lubricant only when required
38. Damage warningDo not use if cracked, loose or leaking
39. StorageStore dry and protected from contamination
40. PackagingBulk or retail packaging according to order
41. OEM serviceCustom inlet, coupler profile and branding may be available
42. Package contents1 x JS-3 three-way air splitter manifold

Installation Guidance

  1. Shut down the compressor and fully depressurize the line.

  2. Verify the inlet and plug profiles.

  3. Connect the manifold securely and attach matching plugs.

  4. Restore pressure gradually and check all outlets for leakage.
