  • JPH20 Japanese Profile Hose Barb Air Plug for Pneumatic Lines
    ❤ Add to collection

  • JPH20 Japanese Profile Hose Barb Air Plug for Pneumatic Lines

    A plated Japanese-profile pneumatic air plug with an integrated hose-barb tail for connecting flexible air tubing to a matching quick coupler. The stepped barb supports secure hose retention in spray-painting, compressor and light workshop air systems when installed with a suitable clamp.

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consult
Description
A plated Japanese-profile pneumatic air plug with an integrated hose-barb tail for connecting flexible air tubing to a matching quick coupler. The stepped barb supports secure hose retention in spray-painting, compressor and light workshop air systems when installed with a suitable clamp.

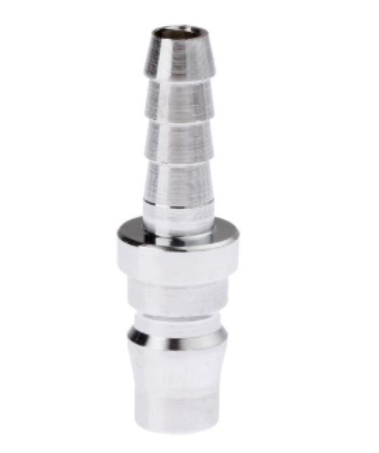

JPH20 Japanese Profile Hose Barb Air Plug

The JPH20 combines a Japanese-profile quick-connect plug with a stepped hose-barb connection. It is designed for compatible flexible pneumatic tubing used with spray guns, airbrush systems, compressors and light air tools.

Product Attributes

AttributeDetails
1. ModelJPH20
2. Product typePneumatic hose-barb quick plug
3. Plug profileJapanese profile
4. Hose connectionStepped barb tail
5. Hose sizeConfirm compatible internal diameter before ordering
6. Main materialPlated metal
7. Surface finishBright silver-colored finish
8. Body shapeStraight plug with tapered barb
9. Connection side oneJapanese quick-connect plug nose
10. Connection side twoFlexible-hose barb
11. Service mediumCompressed air
12. Main functionConnect flexible hose to a quick coupler
13. Spray gun useSuitable for compatible spray-gun hose systems
14. Airbrush useSuitable for compatible pneumatic tubing
15. Compressor useSuitable for light compressor air lines
16. Tool useSuitable for light pneumatic equipment
17. Installation methodPush hose fully over the barb
18. Hose retentionUse a suitable clamp or crimp sleeve where required
19. Coupler compatibilityUse with a matching Japanese-profile coupler
20. Hose compatibilityMatch hose material, wall thickness and bore size
21. Pressure ratingLimited by the lowest-rated hose, clamp or fitting
22. Temperature rangeDepends on hose and fitting materials
23. AirflowDepends on hose bore, barb size and system pressure
24. ReusabilityReusable when the barb and plug profile remain undamaged
25. PortabilityCompact and lightweight
26. StorageSuitable for hose-repair and fitting kits
27. Automotive useBody-shop and vehicle refinishing air lines
28. Furniture useFurniture and cabinetry spray-finishing systems
29. Industrial useLight maintenance and production air tubing
30. DIY useGarage and hobby compressor setups
31. Leak preventionUse the correct hose bore and secure clamp
32. InspectionCheck barb ridges, hose end, clamp and plug groove
33. CleaningKeep free from paint, dust and debris
34. MaintenanceReplace hardened, cracked or loose hose sections
35. SafetyDepressurize before installing or removing the hose
36. Assembly cautionDo not heat or stretch the hose excessively
37. Damage warningReplace bent, scored or leaking fittings
38. Chemical cautionVerify hose and fitting compatibility with oils or cleaners
39. PackagingBulk or retail packaging available
40. OEM serviceCustom barb size, finish and packaging may be available
41. BrandingPrivate-label options subject to order quantity
42. Package contents1 x JPH20 Japanese-profile hose-barb air plug

Installation Guidance

  1. Turn off the compressor and release all pressure.

  2. Verify the hose bore and coupler profile.

  3. Push the hose fully over the barb and secure it with a suitable clamp.

  4. Reconnect at low pressure and inspect the hose joint and coupler for leaks.
