Product Overview

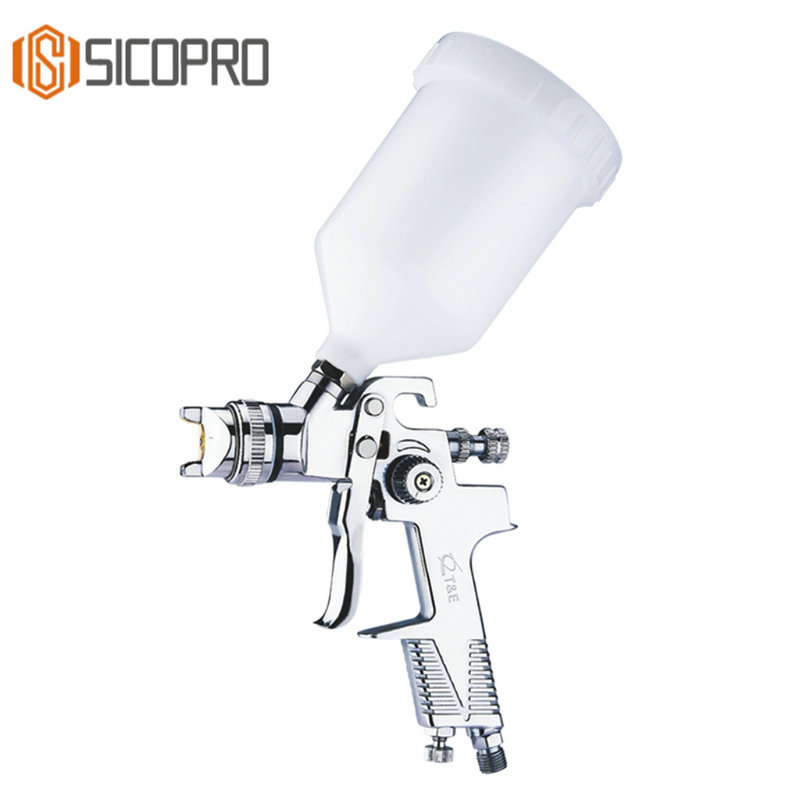

The H‑970P professional HVLP gravity‑feed spray gun features a 600 ml capacity paint cup and multiple interchangeable nozzles (1.4mm / 1.7mm / 2.0mm / 2.5mm), ideal for automotive refinishing, furniture finishing and industrial coatings. With HVLP technology, it offers excellent atomisation, reduced overspray and improved material utilisation.

Key Specifications

• Model: H‑970P

• Spray Gun Type: HVLP (High Volume Low Pressure)

• Feed Type: Gravity‑feed (top‑mounted paint cup)

• Paint Cup Capacity: 600 ml

• Nozzle Sizes Available: 1.4 mm, 1.7 mm, 2.0 mm, 2.5 mm

• Air Inlet: ¼″ thread standard

• Optimal Working Pressure: approx. 3.5 bar (≈50 psi)

• Air Consumption: approx. 3.5‑4.5 cfm

• Body Material: Aluminium alloy

• Cup Material: Plastic or Aluminium (600 ml)

• Application Fields: Automotive refinishing, furniture finishing, industrial parts coating

• Paint Material Compatibility: Primers, basecoats, clearcoats, water‑based and solvent‑based paints

• Spray Pattern Adjustment: Fan width control, round/oval pattern selectable

• Nozzle & Needle Material: Stainless steel

• Maintenance: Easy disassembly of cup, needle and nozzle for cleaning

• Suitable Spraying Distance: Approx. 200 mm (8″)

• Weight: Approx. 0.8‑1.0 kg

• Packaging Dimensions: approx. 30 × 10.5 × 24 cm

• OEM/ODM Support: Custom logos, packaging, colors available

• Efficiency: HVLP technology allows up to ~30% paint savings

• Spray Width: Wide fan pattern capability

• Recommended Compressor: ≥3 cfm output at ~4 bar

• Ideal Working Environment: 20‑30 °C ambient

• Installation: Paint cup thread or quick‑connect

• Usage Scenario: Car bodywork, furniture panels, industrial cabinets

• Safety Note: Use in well‑ventilated area with mask and gloves

• Spare Parts Available: Nozzles, needles, gaskets, cups

• Spray Quality: Excellent for smooth, uniform finish

• Spray Method: Hold gun perpendicular, steady motion, overlap passes

• Maintenance Tip: Clean immediately after use

• Environmental Benefit: Lower overspray, reduced paint waste

• Target Users: Professional painters, refinishing shops, industrial technicians

Typical Applications

1. Automotive body repair and refinishing – smooth topcoat application.
2. Furniture finishing – thicker varnish or lacquer layers.
3. Industrial parts coating – uniform finish on cabinets, metal parts.
4. Custom crafts – detailed coating for artwork or prototypes.

Usage & Maintenance Tips

• Use clean, dry air supply.

• Match paint viscosity to nozzle size.

• Spray at ~200 mm distance in overlapping strokes.

• Clean components after use to prevent clogging.

• Adjust controls if spray becomes uneven.
