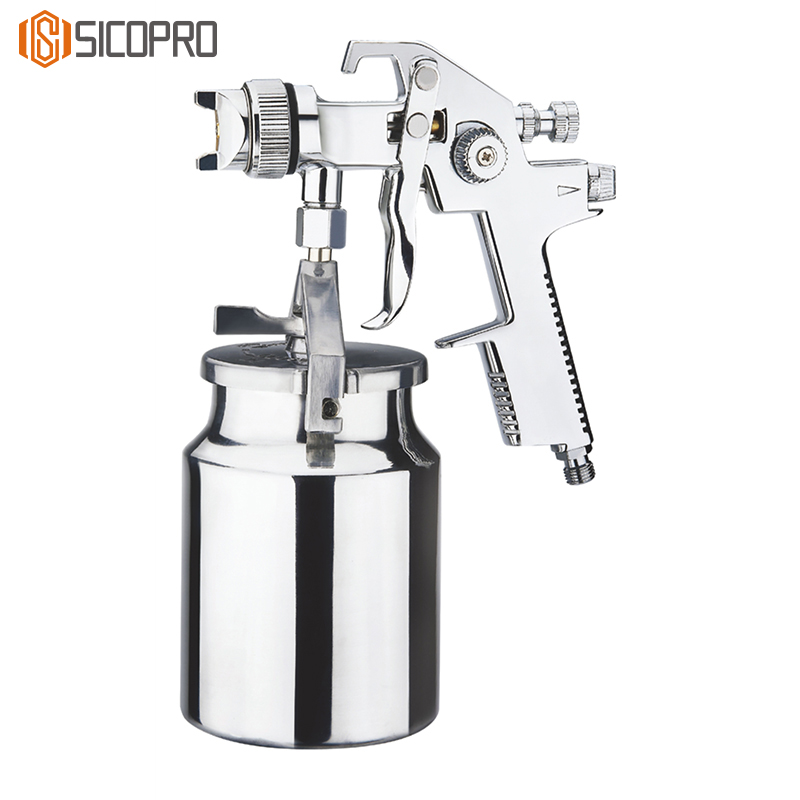

Model: AB-17S
Spray Type: LVLP (Low Volume Low Pressure)
Paint Feed Type: Suction (Bottom cup)
Body Material: Stainless Steel + Aluminum Cup
Nozzle Sizes: 1.3mm / 1.5mm / 1.8mm options
Working Pressure: 2.0–3.5 bar
Air Consumption: 3.5–4.2 CFM
Spray Distance: 150–200mm
Paint Viscosity Suitability: Low to medium
Spray Width: 180–230mm
Air Inlet: 1/4" BSP
Cup Capacity: 1000ml
Cup Material: Stainless Steel
Adjustment Knobs: Fan, Fluid, and Air control knobs
Spray Finish: Fine atomization with minimal overspray
Body Finish: Chrome-plated
Weight: Approx. 800g
Color: Silver
Nozzle Material: Stainless Steel
Needle Material: Stainless Steel
Suitable Coatings: Water-based paint, lacquer, primer, clear coat, etc.
Atomization: High atomization
Transfer Efficiency: ≥80%
Air Saving: Low air consumption design
Maintenance: Easy to disassemble and clean
Applications: Automotive refinishing, furniture coating, metalwork, machinery
Users: Professional painters, auto body technicians
Packing: Box or blister pack
Working Environment: Workshops, body shops, paint booths
Surface Treatment: Anti-corrosion chrome plating
Connection Type: Threaded connector
Pressure Resistance: Reinforced pressure-resistant structure
Accessories: Replaceable nozzle, needle, knobs
Spray Speed: High-efficiency output
Eco-friendly: Reduced overspray for lower waste
Corrosion Resistance: Excellent
Sealing: Premium sealing ring to prevent leakage
After-sales Service: 1-year warranty, lifetime support
Certification: CE Certified
