Model: W-71
Type: Gravity Feed Spray Gun
Nozzle Size: 1.5mm (optional: 1.3mm, 1.7mm)
Feed Type: Gravity
Material Cup Capacity: 600 ml
Cup Material: Polished aluminum
Gun Body Material: Chrome-plated aluminum
Needle and Nozzle Material: Stainless steel
Surface Finish: Chrome finish for corrosion resistance
Air Pressure: 2.0 - 3.5 bar
Air Consumption: 4.5 - 6.0 CFM
Pattern Width: 180mm - 250mm
Fluid Control: Adjustable knob
Pattern Control: Adjustable knob
Trigger: Dual-action
Connector: 1/4” NPT
Color: Chrome silver
Spray Type: Fine atomization for smooth finish
Transfer Efficiency: ≥ 70%
Applications: Automotive refinishing, furniture coating, general painting
Compatible Paints: Solvent-based and water-based paints
Use Frequency: Designed for regular use
Maintenance: Easy to clean with included tools
Cleaning Tools: Brush, spanner included
Instruction Manual: Included (parts list + diagram)
Durability: Long service life
Noise Level: Low
Operating Temperature: 5°C - 40°C
Paint Viscosity Range: Thin to medium
Spray Distance: Optimal 15-20 cm
Grip Design: Anti-slip ergonomic handle
Finish Quality: Smooth and consistent coating
CE Certification: Yes
Portability: Compact and lightweight
Anti-leak Design: Secure cup thread connection
Warranty: 1-year manufacturer’s warranty

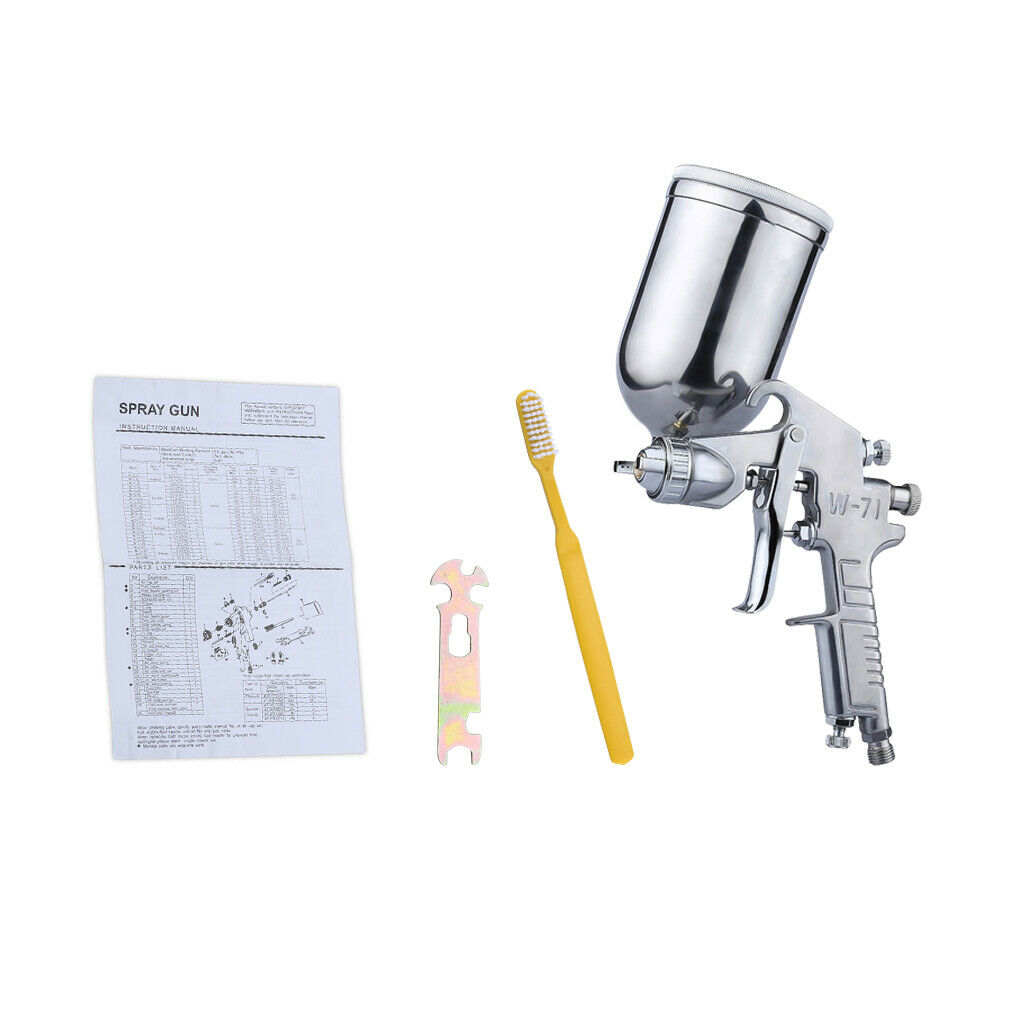

Accessories Included: Spanner wrench, toothbrush-style brush, manual
Tool-Free Disassembly: Yes
Vibration: Minimal
Storage Conditions: Dry, dust-free space
Ideal Users: Auto body shops, woodworkers, DIYers
The W-71 spray gun is a versatile and reliable tool for achieving professional-level finishes. With its chrome body, stainless steel components, and gravity feed design, it's built for quality results across various painting applications.
