W-77S Atomizing Cap Spray Gun Specifications

• Model: W-77S

• Type: Siphon Feed Spray Gun

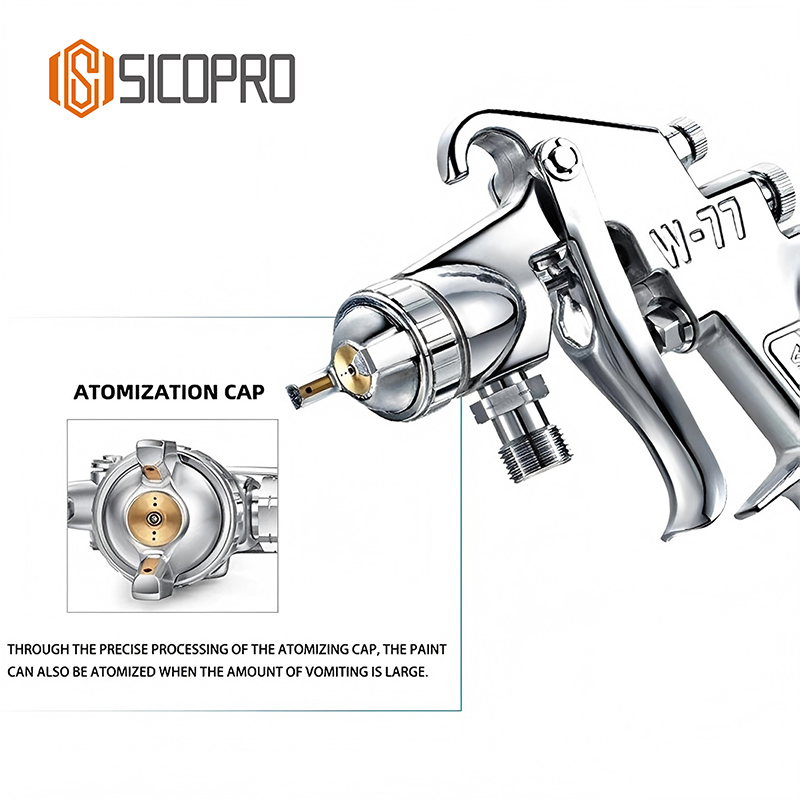

• Atomizing Cap: CNC-machined precision copper

• Nozzle Size: 1.5mm (Options: 1.3 / 1.5 / 1.8mm)

• Nozzle Material: Brass + stainless steel

• Spray Pattern: Fine mist atomization

• Cup Type: Bottom-mounted metal cup

• Cup Capacity: 1000ml

• Working Pressure: 2.5~4.0 bar

• Air Consumption: 220~280 L/min

• Air Inlet: G1/4

• Control System: 3 adjustable knobs (fan, fluid, air)

• Compatible Paints: Primer, base coat, clear coat, water-based

• Applications: Automotive touch-up, metal parts, furniture finishing

• Spray Finish: Smooth and professional

• Needle Material: Stainless steel

• Corrosion Resistance: Excellent

• Surface Finish: Chrome mirror finish

• Body Construction: Die-cast aluminum alloy

• Spray Width: 200~280mm

• Spray Distance: 15~25cm

• Durability: Long-life sealing components

• Air Regulation: Micro-adjustment knob

• Ergonomics: Comfortable grip design

• Energy Efficiency: LVLP low-pressure operation

• Weight: Approx. 690g

• Operation: Pneumatic, handheld

• Compressor Compatibility: Universal

• Ease of Maintenance: Fully disassemblable

• Brand: SICOPRO

• Origin: China

• Packaging: Color box

• Warranty: 1 year

• Serviceability: Replaceable parts

• Certification: ISO & RoHS compliant
